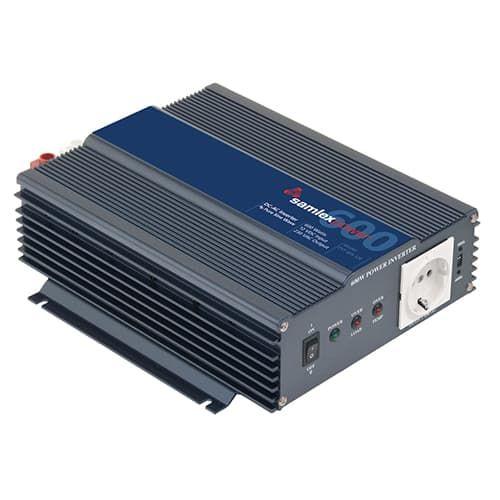

This high efficiency DC-AC inverter converts 12 Volts DC to 600 Watts of pure sine-wave AC power at 230 Volts, 50 / 60 Hz (Switch selectable: 50 Hz default). The unit comes with pin-type battery cable lugs. Features include overload protection, low battery alarm / shut down, low idle power draw of less than 0.8 Amps. AC power is available from a Schuko receptacle.

Design Features

• 50 / 60 Hz (Switch selectable: 50 Hz default)
• High efficiency
• Low battery voltage alarm
• Protections; input low voltage, input over voltage, over temperature, over load, short circuit
• Low idle power draw
• Optional remote control (sold separately): Model R-15

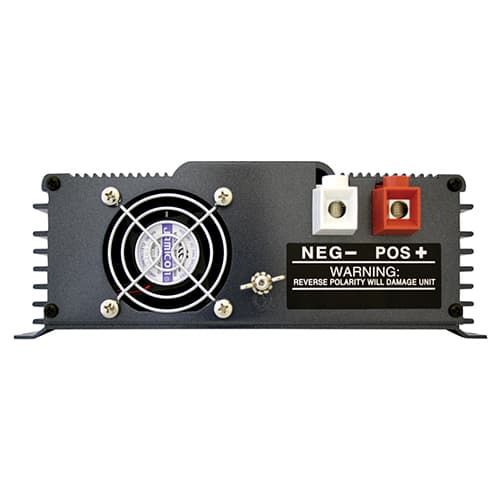

• Comes with pin-type battery cable lugs
• Product Manual | Download
• Samlex Specifications (EN) | Download
• Samlex Specifications (ES) | Download

Applications

• Service vehicles
• Mobile offices
• Boats
• Recreation Vehicles, Camping
• Telecommunication
• Field work / Construction sites
• Solar power systems
• Emergency backup power
• Home electronics: TV, VCR, video games
• Computers, printers

Input	10.7 to 16.5 VDC
Output	230 VAC
Watts	600
Amps	80
Surge	1000 Watts
Weight	5.4 (lb)
Weight	2.5 (kg)
Dimensions	11.1 x 9.5 x 3.2 (in)
Dimensions	28.1 x 24.1 x 82
Safety	Conforms to EN 60950-1
