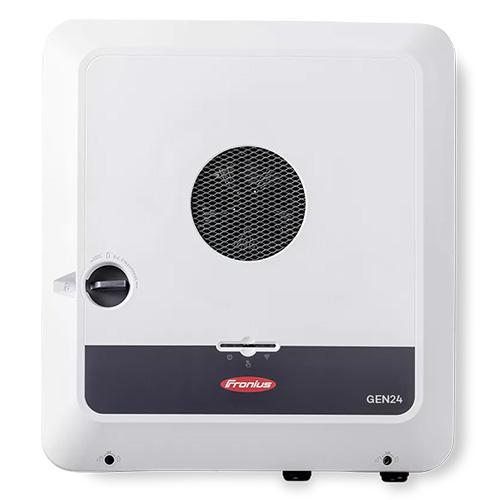

Fronius Primo GEN24 UL

Residential inverter with integrated backup power

Our single-phase inverter is the ideal heart of residential PV systems. The Fronius GEN24 combines smart solutions, intelligent software, and thoughtful engineering to achieve maximum yields.

With PV Point, the Fronius GEN24 offers an integrated basic backup power supply: Connected devices are supplied with backup power through a designated socket as long as the sun is shining.

With its diverse features, the Fronius GEN24 enables economic sustainability for long-term energy self-sufficiency. Discover the key advantages for installers and their customers:

• Integrated shade management
• Basic backup power without battery
• Highly flexible system design potential
• Built-in longevity thanks to the Active Cooling Technology
• Made in Europe
• Sustainably future-proof
• Brochure Fronius GEN24Plus 208-240 | Download
• Brochure Fronius Primo GEN24 208-240 [CAN] | Download
• Brochure Fronius Primo GEN24 208-240 [US] | Download
• Brochure Fronius Primo GEN24 208-240 Plus | Download

Number of MPP trackers	2
PV input power	8000 W
Feed-in start voltage (Udc start)	80 V
Min. MPP voltage ( U mpp min)	260 V
Max. MPP voltage ( U mpp max)	480 V

Max. switchover time PV-Point	22 s
Max. switchover time Full Backup	17 s

Mains Frequency	50 1/s, 60 1/s
Length	583 mm
Width	529 mm
Height	583 mm
Depth	180 mm
Weight	20,85 kg
Weight incl. packaging	25,9 kg
Protection class	1
Overvoltage category (DC / AC) 1)	2 / 4
Inverter design	Transformerless
Cooling	Active Cooling Technology
Installation	Indoor and outdoor installation
Min. permissible ambient temperature	-40 ??C
Max. permissible ambient temperature	60 ??C
DC PV connection technology	2x DC+1, 2x DC+2 and 4x DC- spring-type terminals for solid: copper
DC battery connection technology	1x DC+ and 1x DC- spring-type terminals for solid: copper AWG 12-8
AC connection technology	Spring-type terminals for solid: copper stranded / fine stranded: copper: AWG 12-6 Backup power spring-type terminals: AWG 16-8
Back-up power functions	PV Point
Sound emissions	51 dB(A)
Interference emission class	B

DC insulation measurement	Yes
Overload behaviour	Operating point shift, Power limitation
DC disconnector	Yes
DC Reverse polarity protection	Yes
Arc fault circuit interrupter (Fronius Arc Guard)	Yes

DC insulation measurement	Yes
Overload behaviour	Operating point shift, Power limitation
DC disconnector	Yes
DC Reverse polarity protection	Yes
Arc fault circuit interrupter (Fronius Arc Guard)	Yes

Grid connection	NPE
