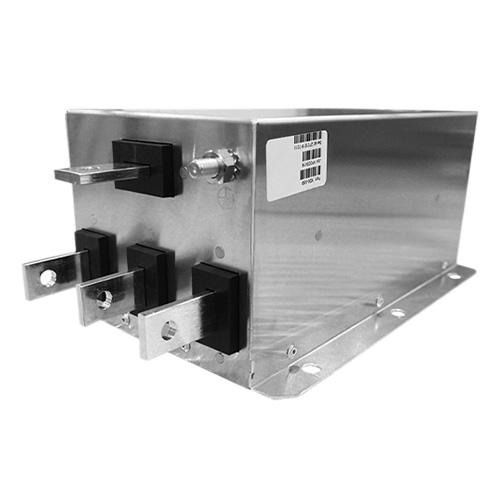

PLC Line Filter

The PLC Line Filter, manufactured by Astrodyne, separates power line communication domains in Enphase commercial installations when multiple IQ Gateways are located on a single utility transformer, or site loads generate enough electrical noise to disrupt communications. The PLC Line Filter is designed to work with IQ8P-3P and IQ8H-3P Microinverters.

Technical Specifications

• Maximum continuous current per line: 400 A (temperature adjusted to 65C)
• Maximum voltage: 480 VAC +10%
• Frequency: 50/60 Hz
• Power dissipation: 75 W max (current dependent)
• Ambient temperature range: -40C to +65C
• Phase coupler: Not required
• RoHS/Safety: Yes/cURus, EN60939
• Terminal style/size: Ground terminal = M10, bus bar = 25 mm with M10 bolt
• Typical leakage current: <10 mA (480 V/60 Hz or 50Hz)
• Insertion loss: (80??ç??130 kHz) >50 dB
• Impedance: (80??ç??130 kHz) >100
• PLC Line Filter quick install guide | Download
• PLC Line Filter quick install guide - French | Download

Whats in the Box

• PLC Line Filter

Length	17.36 in
Width	6.69 in
Height	5.90 in
Weight	31.0 lbs
