Manufacturer Info

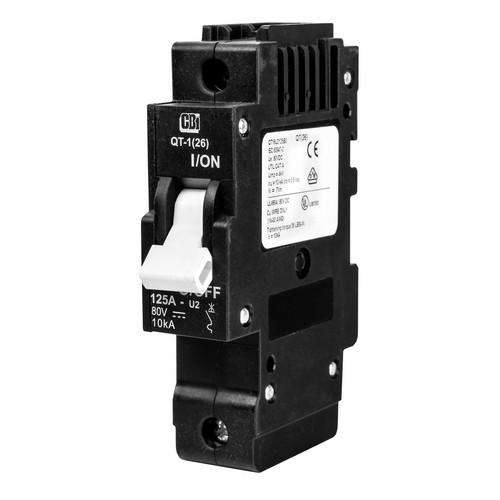

80, 100 and 125 Amp, 80 Volt DC breaker
MidNite's breakers are rated to break the full rated load at the rated voltage repeatedly, with NO DAMAGE. Always use a properly sized breaker for disconnecting.
Breaker Torque Value: 35 In-Lbs (4NM)
All MidNite circuit breakers can be used at 100% rated current when mounted in a MidNite enclosure.
Features
DC circuit breaker Hydraulic-magnetic technology 100% rating capability, independent of ambient temperature One, two, two pole bridged and four pole (2pole + 2pole bridged) VDE and CCC approved, CE certified UL 489A listed IEC 60947-2 and AS/NZS 60947-2 approved Ratings 70 A to 250 A Precision tripping characteristics Can be switched immediately after tripping Dual mount product in black shells
MidNite's breakers are rated to break the full rated load at the rated voltage repeatedly, with NO DAMAGE. Always use a properly sized breaker for disconnecting.
Breaker Torque Value: 35 In-Lbs (4NM)
All MidNite circuit breakers can be used at 100% rated current when mounted in a MidNite enclosure.
Features
- 80, 100 and 125 Amps / 80 Volts DC
- NON POLARIZED
- Width 1 inche (25.4mm) - 1/4 inch studs
- Environmental Rating - Type 1 (Indoor)
- Warranty - 5 yrs.
- Listed for US to UL 489A
- Dual mount Din and Mini
- -40C to +85C
- 14 to 1/0 AWG
- QT CBI DATA SHEET | Download
DC circuit breaker Hydraulic-magnetic technology 100% rating capability, independent of ambient temperature One, two, two pole bridged and four pole (2pole + 2pole bridged) VDE and CCC approved, CE certified UL 489A listed IEC 60947-2 and AS/NZS 60947-2 approved Ratings 70 A to 250 A Precision tripping characteristics Can be switched immediately after tripping Dual mount product in black shells
