• Materials: Uv Resistant Polycarbonate, Stainless Steel, Brass
• Box Volume: 153 In^3 [2,507 Cm^3]
• Enclosure Type: Type 3R, Roof Pitch 2:12 - 12:12
• Torque Specification: 36 In.Lb [4.07 N.M]
• Certification:Ul 1741 Listed Solar Transition Box, File E534366
• Weight:1.692 [.767]
• Product Specifications | Download

• Photovoltaic System Transition Box: E534366
• Maximum Voltage: 600V
• Maximum Amperage: 20A Per String

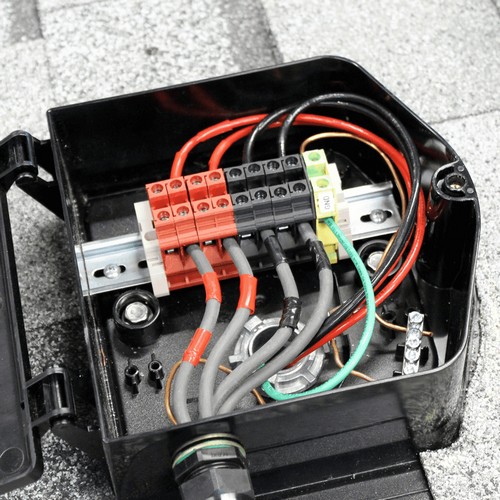

• Maximum Number Of Strings: 4
• Allowable Wire: Use 90C Copper Wire, 12-6 Awg
• Enclosure Rating: Type 3R

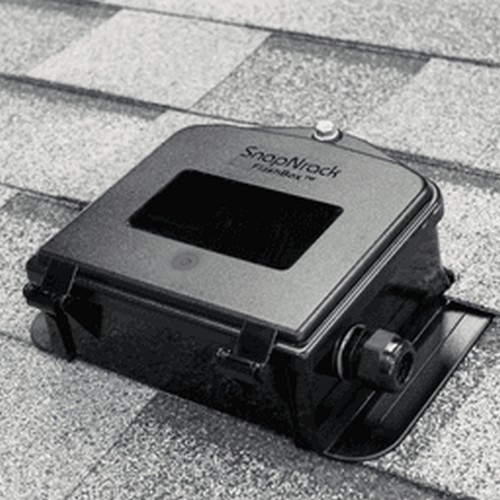

• Roof Slope Range: 2:12 - 12:12
• Max Side Wall Fitting Size: 1"
• Max Floor Pass-Through Fitting Size: 11 4"
• Ambient Operating Conditions: -35C To 75C
• Box Volume: 153 In3
• Caution - Bonding Between Conduit Connection Is Not Automatic And Must Be Provided As A Part Of The Installation!
• Caution - Risk Of Electric Shock! Powered When Pv Modules Are Exposed To Sunlight!

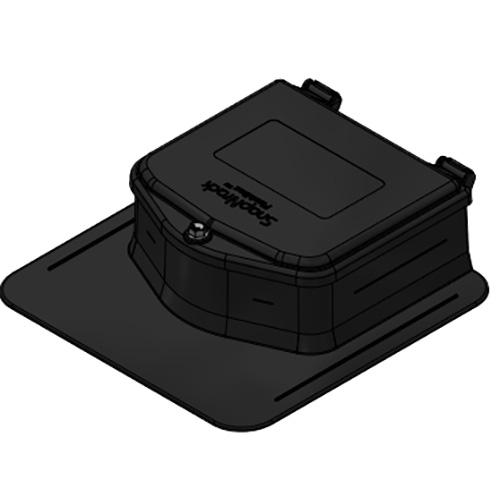

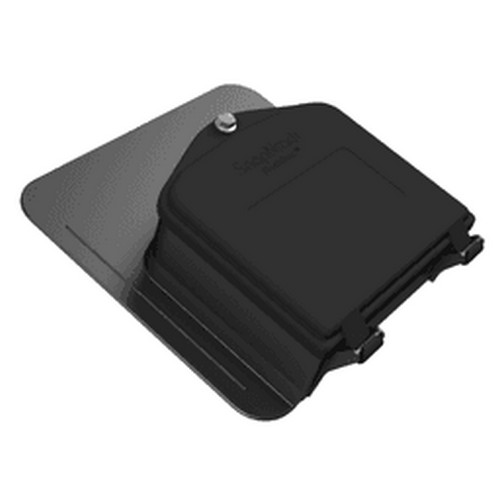

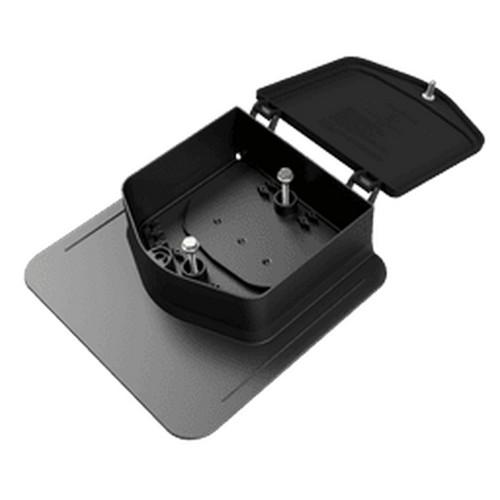

• Snapnrack, Flashbox, Box Body x 1
• Snapnrack, Flashbox, Box Lid x 1
• Bolt, Flange, Non-Serrated, 5-16In-18 X 1In, SS x 1
• Snapnrack, Retaining Washer For Standard Bolts, Plastic x 1
• Snapnrack, Sealing Washer Wood Screw, #14 X 2-1-4In, 1-2In Hex Head, SS x 2
