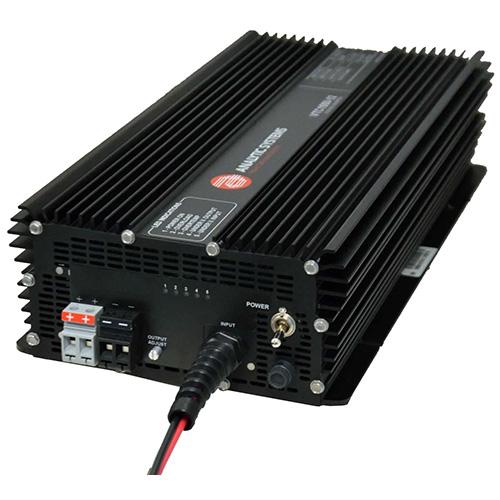

Analytic Systems, VTC1550-12, 100/120A, 12V Out, 100-400VDC In, Iso DC/DC Voltage Converter, PFC
Manufacturer Info
Features
Two positive and two negative output connections are provided for easy connection to multiple devices. The recently updated single board design incorporates power factor correction technology for unmatched efficiency. Multiple stages of filtering reduce radiated and conducted noise to MIL461 levels for ultra-quiet operation.
Safety features include over-temperature shutdown, current limiting, short circuit protection with automatic recovery, input under voltage shutdown, reverse polarity connection protection and output over-voltage protection. Extra features include visual indicators for low input voltage, overload and overtemperature, dry contact output fail output and remote control connection.
- Simple Operation
- Multiple stages of filtering for ultra-quiet operation
- Power factor correction technology
- LED indicators show operating condition and alarm states
- Over load, over voltage, and over temperature protection
- Ruggedized options available
- Five year parts and labour warranty
- Product Datasheet | Download
- Product Manual | Download
Two positive and two negative output connections are provided for easy connection to multiple devices. The recently updated single board design incorporates power factor correction technology for unmatched efficiency. Multiple stages of filtering reduce radiated and conducted noise to MIL461 levels for ultra-quiet operation.
Safety features include over-temperature shutdown, current limiting, short circuit protection with automatic recovery, input under voltage shutdown, reverse polarity connection protection and output over-voltage protection. Extra features include visual indicators for low input voltage, overload and overtemperature, dry contact output fail output and remote control connection.
| Function | Voltage Converter |
|---|---|
| Conversion | DC to DC |
| Power Level | 1500 |
| Input Volts | 100 - 400 VDC |
| Power Factor Corrected (PFC) | Yes |
| Output Volts | 12 VDC |
| Output Amps Continuous | 100 |
| Output Amps Peak | 120 |
| Input/Output Isolation | Yes |
| Technology | Analog |
| Product Series on website | VTC1550 |
| Option Codes | 'Z' No Conformal Coating (Any Model), 'V' Digital Volt/Ammeter, 'U' Safety Special Inspection (CSA/UL), 'P' Portable (Handle & Feet), 'M' Military Rugged, 'E' European ROHS compliant |
