Features

• Simple Operation
• Multiple stages of filtering for ultra-quiet operation
• Power factor correction technology
• LED indicators show operating condition and alarm states
• Over load, over voltage, and over temperature protection
• Ruggedized options available
• Five year parts and labour warranty
• Product Datasheet | Download
• Product Manual | Download

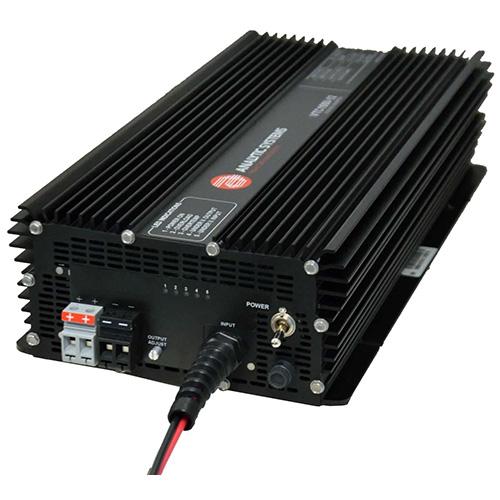

The VTC1050 Voltage Converters provide up to 1000 watts continuous and 1200 watts intermittent to power one or more loads from a 100-400 VDC source.

Two positive and two negative output connections are provided for easy connection to multiple devices. The recently updated single board design incorporates power factor correction technology for unmatched efficiency. Multiple stages of filtering reduce radiated and conducted noise to MIL461 levels for ultra-quiet operation.

Safety features include over-temperature shutdown, current limiting, short circuit protection with automatic recovery, input under voltage shutdown, reverse polarity connection protection and output over-voltage protection. Extra features include visual indicators for low input voltage, overload and overtemperature, dry contact output fail output and remote control connection.

Function	Voltage Converter
Conversion	DC to DC
Power Level	1500
Input Volts	100 - 400 VDC
Power Factor Corrected (PFC)	Yes
Output Volts	48 VDC
Output Amps Continuous	20
Output Amps Peak	25
Input/Output Isolation	Yes
Technology	Analog
Product Series on website	VTC1050
Option Codes	'Z' No Conformal Coating (Any Model), 'V' Digital Volt/Ammeter, 'U' Safety Special Inspection (CSA/UL), 'P' Portable (Handle & Feet), 'M' Military Rugged, 'E' European ROHS compliant
