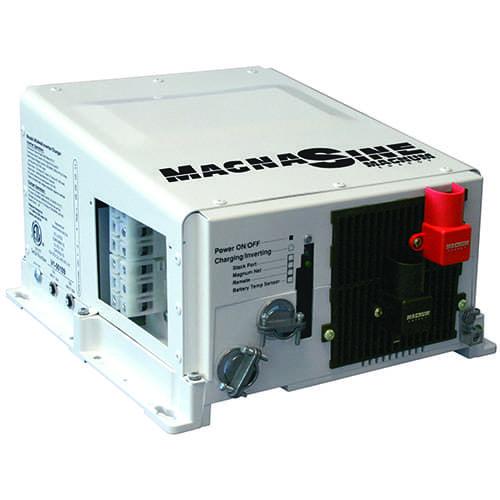

Magnum Energy, MS4348PE, 4300W 48VDC Pure Sine Inverter Charger

Model: MS4348PE
GTIN: 00892608001417
Manufactured by: Magnum Energy
Condition: New
Estimated Delivery: Nov 23rd - Nov 29th
In Stock
Out of Stock

Price:

$2,640.51 $2,031.16

Would you like to add these items to your order?

	Magnum Energy, ME-BMK-R-L, Battery Monitoring Kit - Battery State of Charge Meter (Includes 500A/50mV DC Shunt) $226.97 $174.59	Add Magnum Energy, ME-BMK-R-L, Battery Monitoring Kit - Battery State of Charge Meter (Includes 500A/50mV DC Shunt) to cart
	Magnum Energy, ME-AGS-N, Automatic Generator Start Module 3-relay with Voltage and Temp Start/Network Version $323.52 $248.86	Add Magnum Energy, ME-AGS-N, Automatic Generator Start Module 3-relay with Voltage and Temp Start/Network Version to cart
	Magnum Energy, ME-ARC50-L, Advanced Remote Digital LCD Display Remote Panel with 50' Cable $420.73 $323.64	Add Magnum Energy, ME-ARC50-L, Advanced Remote Digital LCD Display Remote Panel with 50' Cable to cart

Manufacturer Info

Other products

The MS-PE Series Inverter/Charger from Sensata Technologies is a 230 VAC / 50 Hz, pure sine wave inverter designed specifically for the most demanding renewable energy applications. The MS-PE Series is powerful, easy-to-use, and best of all, cost effective. Parallel stacking: You can parallel up to four inverter/chargers for up to 17.2kw of power at 230V. The ME-ARTR Router is required for parallel stacking the MS-PE Series. Power Factor Corrected (PFC) Charger: Our PFC charger is built into all of our inverter chargers. It uses less energy from a generator than a standard charger - using 25-30% less AC current than standard chargers. Safe and reliable: The MS-PE Series is listed to the stringent requirements of CE for renewable energy installations.

Features

Versatile mounting
Lightweight
Pure sine wave
Multiple ports
Accessible design
Convenient switches
Download Owners Manual | Download
Download Spec Sheet | Download
Download Spec Sheet (Spanish) | Download
Download Owners Manual (Spanish) | Download

Options

Remote Panel

ME-RC, ME-ARC

Charger Type

Bulk, Absorb, Float, Equalize (requires remote), and Battery SaverTM

Input Current

Output Current

Output Power	4,300W
Peak Watts	7,500W
Warranty	Two years
Output Voltage	230 VAC
Output Current	18.7 amps
Output Waveform	Pure Sine
Output Frequency	50 Hz
Input Voltage	48
Operating Temp	-20 C to +60 C (-4 F to 140 F)
Efficiency	91%
Weight	25.0 kg (55 lb)
Dimensions	38.1 cm x 16.5 cm x 12.7 cm (15.0” x 6.5” x 5.0”)
UL Certified	No
Phase	Single
Topology	Low Frequency
Input Battery Voltage Range	36 - 64
