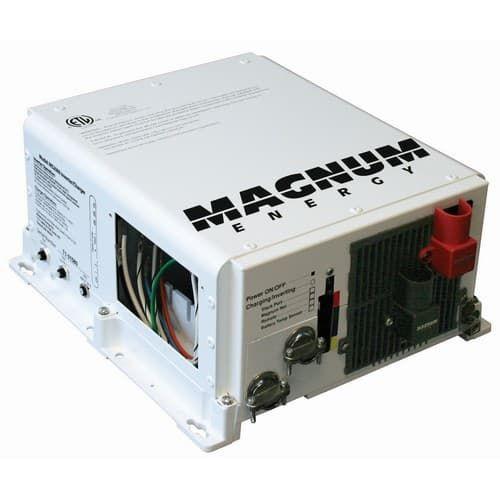

Magnum Energy, MS2000-L-U, 2000 Watt, 12V Inverter/100 Amp PFC Charger/30Amp Single Input/Output

Model: MS2000-L-U
Manufactured by: Magnum Energy
Condition: New
Estimated Delivery: Nov 22nd - Nov 28th
This product is currently on backorder.
Expected Ship Date: Friday 27 December, 2024
In Stock
Out of Stock

Price:

$2,077.53 $1,598.10

Would you like to add these items to your order?

	Magnum Energy, ME-BMK-R-L, Battery Monitoring Kit - Battery State of Charge Meter (Includes 500A/50mV DC Shunt) $226.97 $174.59	Add Magnum Energy, ME-BMK-R-L, Battery Monitoring Kit - Battery State of Charge Meter (Includes 500A/50mV DC Shunt) to cart
	Magnum Energy, ME-AGS-N, Automatic Generator Start Module 3-relay with Voltage and Temp Start/Network Version $323.52 $248.86	Add Magnum Energy, ME-AGS-N, Automatic Generator Start Module 3-relay with Voltage and Temp Start/Network Version to cart
	Magnum Energy, ME-ARC50-L, Advanced Remote Digital LCD Display Remote Panel with 50' Cable $420.73 $323.64	Add Magnum Energy, ME-ARC50-L, Advanced Remote Digital LCD Display Remote Panel with 50' Cable to cart

Manufacturer Info

Other products

2000W 12VDC Pure Sine Inverter Charger MS Series
MS2000 (MS2000-GL, MS2000-L-U, MS2000-L-F, MS2000-15BL-U, MS2000-20BL-U, MS2000-20BL-F)

The MS Series Inverter/Charger - a pure sine wave inverter designed specifically for the most demanding mobile, backup, and off-grid applications. The MS Series Inverter/Charger is powerful, easy-to-use, and best of all, cost effective.

Battery Profile Presets: Using the ME-RC, ME-ARC, or ME-MR Remote Controls, easily choose from and set standard battery profiles, including Lithium Iron Phosphate (LFP) - only available via the ME-RC and ME-MR, Gel, Flooded, AGM1, and AGM2.

Power Factor Corrected (PFC) Charger: Our PFC charger is built into all of our inverter/chargers. It uses less energy from a generator than a standard charger - using 25-30% less AC current than standard chargers.

Expanded Transfer Relay: 60 Amp transfer service is available on all models except MS2000, which is 30 Amp only.

Download Owners Manual | Download
Download Spec Sheet | Download
3D Images | Download

Remote Panel

ME-ARC, ME-RC

Charger Type

Bulk, Absorb, Float, Equalize (requires remote), and Battery SaverTM

Input Current

15 Amps AC

Output Current

100 ADC

Output Power	2,000W
Peak Watts	3,300W
Warranty	Three years parts and labor
Output Voltage	120 VAC
Output Current	16.7 amps
Output Waveform	Pure Sine
Output Frequency	60 Hz
Input Voltage	12
Operating Temp	-20° C to +60° C (-4° F to 140° F)
Efficiency	90.6%
Weight	42 lb (19.1 kg)
Dimensions	13.75” x 12.65” x 8.0” (34.9 cm x 32.1 cm x 20.3 cm)
UL Certified	Yes
Phase	Single
Topology	Low Frequency
Input Battery Voltage Range	9-16.8
