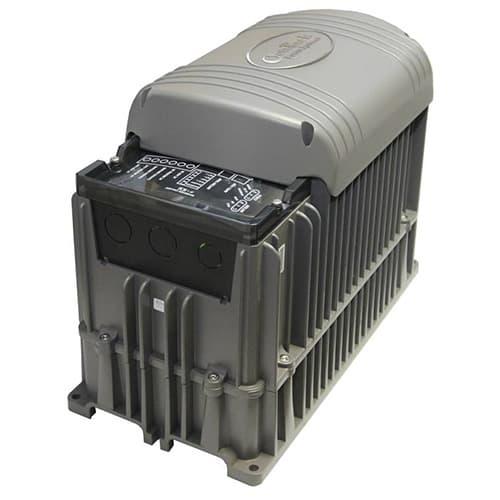

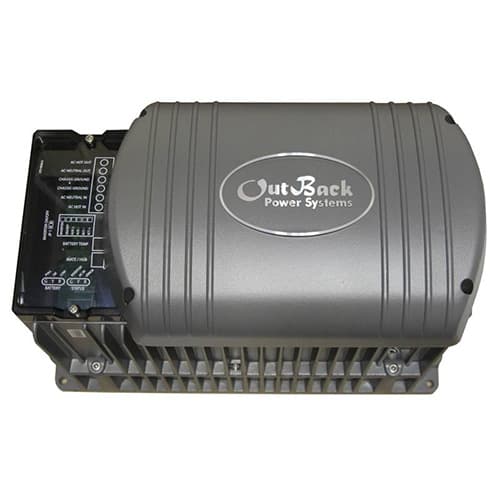

The OutBack true sine wave GFX International SeriesInverter/Charger is a competitive power solution designed forapplications with lower power demands. Incorporating a DC to ACsine wave inverter, battery charger and AC transfer relay housed withina die-cast aluminum chassis, the International Series GFXInverter/Chargers give you the ability to sell solar, wind or hydropower back to the utility grid while providing instantaneous backuppower in the event of a utility outage.

The GFX International Series built-in transfer relay automaticallydisconnects your loads from the utility grid and powers them from theinverter in the event of an outage, allowing you to continue using yoursolar and battery backup power, unlike traditional grid-tie systems. Forareas that frequently experience power instability such as surges,spikes or brownouts, or where standard inverters have trouble syncing tothe utility grid, the GFX International Series grid reconnect timershave been shortened to reduce overall sell-back downtime and improvesystem functionality.

Intelligent multi-stage battery charging prolongs the life of yourbatteries and built-in networked communications allow for simultaneouscommunications of up to ten OutBack Power components within the system.The exclusive modular system architecture means that increased poweroutput is just an additional inverter/charger away. Our GFXInternational Series uses a sealed chassis that can operate in theharshest environmental conditions such as high humidity and corrosivesalt air. OutBack Power inverter/chargers are the only choice when youneed a true sine wave, powerful, modular and reliable power solution foryour home, business or extreme application.

Product Highlights

• Grid-tie, backup or standalone power
• Sine wave output
• Intelligent battery charging with generator support
• High surge and charger ratings
• Sealed chassis for harsh environments
• Field serviceable
• Product Specifications | Download
• Product Manual | Download

	230Vac 50Hz Sealed Models			120Vac 60Hz Sealed Models
	GFX1312E	GFX1424E	GFX1448E	GFX1312	GFX1424	GFX1548
Nominal DC Input Voltage	12 Vdc	24 Vdc	48 Vdc	12 Vdc	24 Vdc	48 Vdc
Continuous Power Rating at 25C	1300 VA	1400 VA	1400 VA	1300 VA	1400 VA	1500 VA
AC Voltage/Frequency	230 Vac 50 Hz	230 Vac 50 Hz	230 Vac 50 Hz	120 Vac 60 Hz	120 Vac 60 Hz	120 Vac 60 Hz
Continuous AC RMS Output at 25C	5.65 Aac	6.09 Aac	6.09 Aac	10.83 Aac	11.66 Aac	12.5 Aac
Full Idle Power	18 Watts	18 Watts	18 Watts	18 Watts	18 Watts	18 Watts
Search	6 Watts	6 Watts	6 Watts	6 Watts	6 Watts	6 Watts
Typical Efficiency	90%	92%	93%	90%	92%	93%
Typical Total Harmonic Distortion	2%	2%	2%	2%	2%	2%
Maximum	5%	5%	5%	5%	5%	5%
Output Voltage Regulation	2%	2%	2%	2%	2%	2%
Peak Maximum Output Current	28 Aac	28 Aac	28 Aac	56 Aac	56 Aac	56 Aac
RMS	20 Aac	20 Aac	20 Aac	40 Aac	40 Aac	40 Aac
Surge AC Overload Capability	4600 VA	4600 VA	4600 VA	4600 VA	4600 VA	4600 VA
5 Second	2900 VA	2900 VA	2900 VA	2900 VA	2900 VA	2900 VA
30 Minutes	1800 VA	2000 VA	2000 VA	1800 VA	2000 VA	2000 VA
AC Input Current Maximum	30 Aac	30 Aac	30 Aac	60 Aac	60 Aac	60 Aac
AC Input Voltage Range (Adjustable)	140 to 280 Vac	140 to 280 Vac	140 to 280 Vac	70 to 140 Vac	70 to 140 Vac	70 to 140 Vac
AC Input Frequency Range	45 to 55 Hz	45 to 55 Hz	45 to 55 Hz	54 to 66 Hz	54 to 66 Hz	54 to 66 Hz
DC Input Voltage Range	10.5 to 17.0 Vdc	21.0 to 34.0 Vdc	42.0 to 68.0 Vdc	10.5 to 17.0 Vdc	21.0 to 34.0 Vdc	42.0 to 68.0 Vdc
Continuous Battery Charger Output	70 Adc	40 Adc	20 Adc	70 Adc	40 Adc	20 Adc
Max DC Current at Rated Power	130 Adc	70 Adc	35 Adc	130 Adc	70 Adc	37.5 Adc
Warranty	5 year			5 year
Unit Weight	49.6 lbs (22.5 kg)			49.6 lbs (22.5 kg)
Shipping	56.4 lbs (25.6 kg)			56.4 lbs (25.6 kg)
Unit Dimensions (H x W x L)	13 x 8.25 x 16.25" (33 x 21 x 41 cm)			12 x 8.25 x 16.25" (30 x 21 x 41 cm)
Shipping	21.75 x 13 x 22" (55 x 33 x 56 cm)			21.75 x 13 x 22" (55 x 33 x 56 cm)
