The images shown are for illustration purposes only and may not be an exact representation of the product

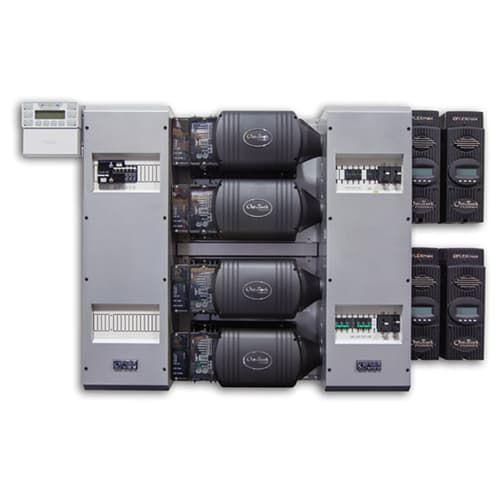

Outback Power, FP4 VFXR3048E, FLEXpower FOUR 12 kW, 48 VDC solution, quad VFXR3048E, pre-wired AC and DC boxes with AC Bypass, 250 Amp DC breakers, PNL-GFDI-80Q and 80 Amp PV breaker, HUB 10.3, RTS, FLEXnet DC, surge protectors plus four FLEXmax 80 MPPT charge controllers, MATE3s and brackets

  • Model: FP4 VFXR3048E
  • Manufactured by: Outback Power
  • Condition: New
  • Estimated Delivery: Nov 23rd - Nov 29th
  • In Stock
Price:

$24,910.45 $19,161.89

Would you like to add these items to your order?
Outback Power, HUB4, Four Port, up to 4 devices and one MATE  $266.48 $204.98

Outback Power, HUB10.3, Ten Port with Sub-Phase Master Stacking, up to 10 devices and one MATE  $498.28 $383.29

Outback Power, MATE3s, Universal version required by (V)FXR and GS inverters, Dark gray square housing with Ethernet port  $731.91 $563.00

Manufacturer Info

(image for) Outback Power
Product Highlights
  • Factory tested, pre-wired and pre-configured systems
  • Fast installation - just hang on the wall with the bracket (included) and make connections
  • Off-grid and grid-tied functionality in one flexible system
  • Powerful system in a compact, space-saving footprint
  • Field-upgradable software
  • Ample AC and DC breaker provisions
  • GridZero technology effectively lets users “zero out” the utility grid if enough renewables are present, reducing or even eliminating grid dependence
  • Advanced Battery Charging (ABC) supports a wide range of battery technologies including lithium-ion
  • All components carry necessary ETL certifications
  • FLEXpower FOUR FXR Datasheet | Download
  • 60Hz FXR (A) Series Datasheet | Download
  • 50Hz FXR (E) Series Datasheet | Download
  • FLEXmax 100 Datasheet | Download
  • MATE3s Datasheet | Download
  • Warranty Information - English / Spanish | Download
  • Warranty Information - French / German | Download
OutBack's pre-assembled and pre-wired FLEXpower systems are equipped with the OutBack FXR / VFXR Series inverter/chargers. This means that the most advanced inverter features are now available on the industry's most trusted and proven systems platform, for unmatched flexibility and value.
  • Two models available for 120/240VAC applications, ranging from 12kW to 14.4kW
  • 50Hz/60Hz selectable for regional diversity
  • Programmable for seven different modes including GridZero, which blends utility power and stored renewable energy, minimizing grid dependence; also support mode for seamless generator integration
  • Advanced Battery Charging (ABC) with expanded charging voltages and time parameters accommodates charging profiles of new and emerging storage technologies including lithium ion, and aqueous types
  • Field-upgradability eliminates system down-time for critical updates
  • Remote system control and monitoring available through any internet-enabled device with OPTICS RE
The FLEXpower FOUR is ideal for split-phase applications with large power requirements such as larger residential, commercial or village power systems, with all necessary components integrated into a compact hang-on-the-wall system with a minimal footprint.
