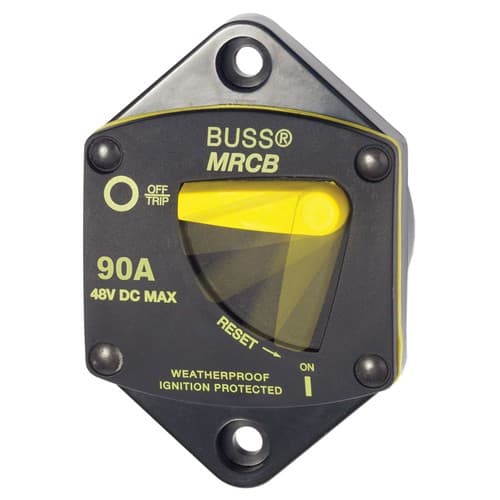

Blue Sea Systems, 7043, 187-Series Circuit Breaker - Panel Mount 90A

Model: 7043
GTIN: 00632085070434
Manufactured by: Blue Sea Systems
Condition: New
Estimated Delivery: Apr 5th - Apr 11th
Estimated Delivery: 1 to 2 Weeks
In Stock
Out of Stock
Lead Time To Ship May Vary

Price:

$135.80 $104.46

Manufacturer Info

Other products

Features

Combines switching and circuit protection into a single device*
Clear, single lever operation
"Trip Free" design cannot be held "ON" during fault current condition
Waterproof
Recessed mounting holes for clean appearance
Large Clearance around terminal studs accept heavy gauge wire lugs
Robust 5/16 M8 terminals provide high torque connections
Large lever with vertical/horizontal orientation provides indication of trip status
Ignition protected - Safe for installation aboard gasoline powered boats
Dimensioned Drawing

* Do not use as a switch where high inrush currents are expected.

Specifications
Amperage	90A
Maximum Voltage	48V DC
Mounting	Panel Mount
Circuit Breaker Type	Thermally responsive Bi-metal blade
Terminal Stud Torque	75 in-lb (8.47 Nm)
Interrupt Capacity	5000A @ 12V3000A @ 24V1500A @ 42V
Minimum Operating Temperature	-40 C
Maximum Operating Temperature	85 C
Case Material	Thermoset Polyester
Circuit Breaker Class	Type III - switchable/manual reset - trip free
Mounting Hole	Accept #10 (M5) Screw
Terminal Stud Size	5/16" - 18
Weight	0.50lb (0.23 kg)
