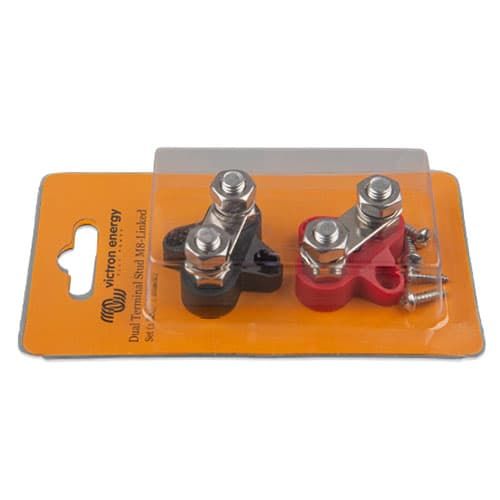

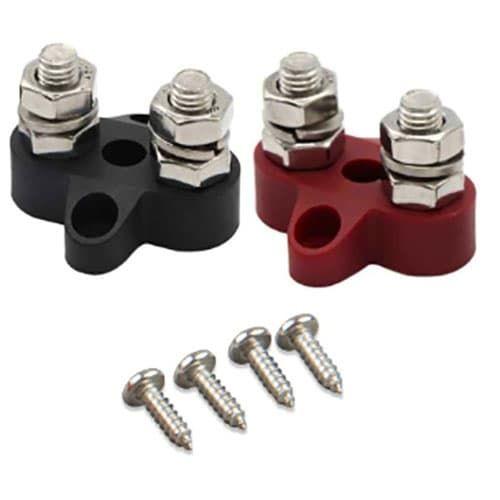

Victron Energy, VBB413020010, Dual Terminal Stud M8-linked set (1 red/1 black)
Manufacturer Info
Dual terminal stud M8 (5/16")
- Max.current: 150A
- Max. Voltage70: VDC
- Terminal diameter: M8 (5/16 inch)
- Terminal height: 17mm/ 0.67 inch
- Terminal material: Stainless steel
- Hex nut material: Stainless steel
- Recommended torque: 10 N-m/ 90lbf-inch
- Busbarstrip material: Tin-platedcopper(1.0x 13mm)
- Base material: Glass fiber reinforced nylon
- Weight: 70 g
- Dimensions (hxwxd): 45 x 43 x 32mm 1.8 x 1.7 x 1.3inch
- Product Specifications | Download
