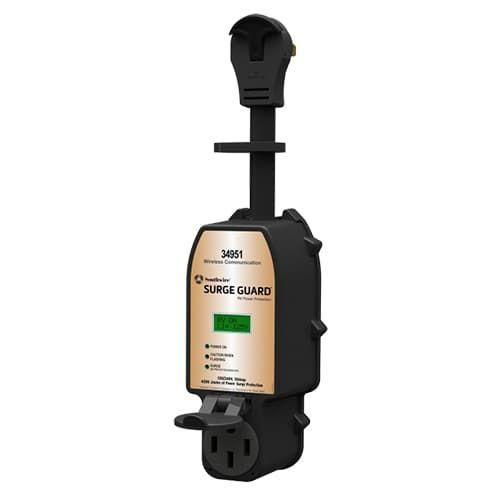

Surge Guard* 50A - Model 34951
Full Protection Portable with Optional Bluetooth Communication
Rated 120/240V, 50A, 4200 Joules

RV Side Electrical Protection
Total electrical protection from faulty park power and electrical issues inside the RV

• Continuously monitors and displays
• Voltage and amp draw (RMS)
• Low and high frequency protection
• Includes anti-theft lock ring on cord
• Patent-pending RV side open neutral protection (50A only)
• Multi-mode surge suppression
• Commercial-grade, brass receptacle
• Automatic reset on power restoration
• 10 second countdown startup sequence
• 128 second reset delay protects A/C compressor
• LCD display (English)
• Convenient Easy-T-Pull handles
• Compatible with 40301 Bluetooth LCD Display
• Installation & Operating Instructions | Download
• Download Brochure | Download
• Troubleshooting Guide | Download
• Warranty Information | Download

Protects against

• Power surges
• Open ground
• Open neutral - line and load side
• Elevated ground line current
• Low (<102V) and high (>136V) voltage
• Overheating receptacle
• Reverse polarity
• Miswired pedestal
• High neutral current (50A model)
• Low and high frequency protection

Features

• Rated 120/240V 50A
• 7200 Watts
• 4200 Joules

Technical Data

• Cord Gauge - 6/3-8/1
• Max Spike Current - 6,500A per MOV
• Over/Under Voltage - Yes
• Open Neutral Protection (Input) - Yes
• Elevated Ground Line Current Protection - Yes
• Thermal Overheating Protection - Yes
• Reverse Polarity Protection - Yes
• Miswired Pedestal Indication - Yes
• Open Ground Protection - Yes
• Dangerous Current on Ground Wire Indication - Yes
• Time Delay at Power Up (10 seconds) - Yes
• Weather Resistant - Yes
• Lock Hasp Available - No
