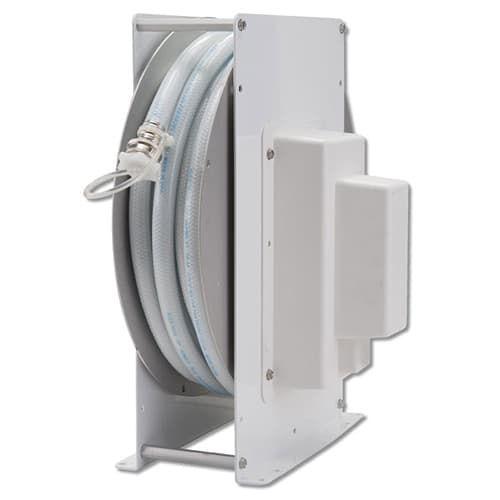

Marine Drinking Water Hose Reel

Hose reels developed specifically for the marine industry to help streamline boatbuilding, saving both manufacturers and boat owners space, time and energy. Shoreline hose reels eliminate struggles, tangles and messes associated with hoses. Reel free spools for hose removal and is powered in by drive motor.

• NEW! High torque motor provides 3x pulling power of previous design
• NEW! Quieter Operation
• Hoses retracted and stored in a single unit, eliminating kinked hoses.
• Side frames are powder coated aluminum
• D/C powered motor for on-board installation; A/C powered motor for dock box installation
• Ceiling/wall mountability saves floor space in engine bay
• Sealed exit hatch available for on-board installation
• Reels are white in color
• Hand crank versions also available
• Marine Drinking Water Hose Reel Instruction Sheet
• Shoreline Reels Mechanical Troubleshooting Guide

Features

• Listed for potable water applications
• Can be used for wash down or ship to shore connection
• Brass rotator and fittings - no plastic parts
• Output is 1/2 inch MPT
• Easily installs with common hand tools
• 50 feet of 1/2" non-collapsible hose
• Certification: ETL - File #3092048

Dimensions	9 W x 14 D x 16 H
Drive System	12 VDC or 24 VDC chain drive gear motor. No clutches - system always engaged
Amp Draw	4-6 Amps in normal operation. Up to 12 Amps in locked rotor condition - motor overload trips between 10-12 Amps depending on duration.
Weight - Cord reel with 50 feet of 1/2 inch hose	19 lbs.
