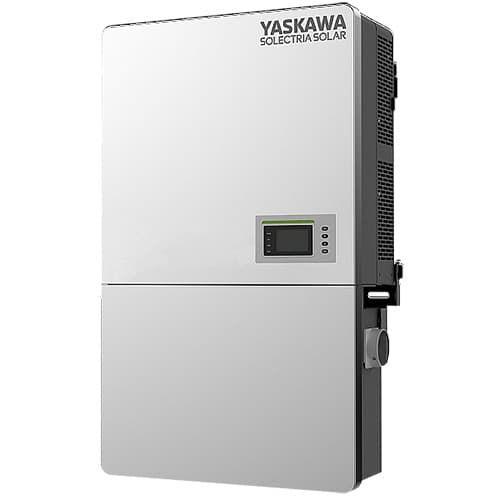

Yaskawa Solectria Solar, PVI-50TL-480, Inverter, Transformerless, 50kW Power Rating, 1000VDC Max Input, 480VAC Output, 10 Year Standard Warranty [MUST ORDER WIRING BOX]. UL1741SB certified Rule 21 compliant.
Manufacturer Info
PVI 50/60TL
50kW and 60kW, 1000VDC Transformerless String Inverters
Yaskawa Solectria Solar's PVI 50TL and PVI 60TL are grid-tied, transformerless three-phase inverters designed for ground mount, rooftop and carport arrays and can be installed from 0 - 90 degrees. The PVI 50/60TL inverters are the most reliable, efficient and cost effective in their class. They come standard with AC and DC disconnects, three MPPTs, a 15-position string combiner, remote diagnostics, remote firmware upgrades and various protection features. Options include H4 wiring box, shade cover, DC combiner fuse bypass, and web-based monitoring.
Yaskawa Solectria Solar's three-phase string inverters, PVI 23/28/36/50/60TL paired with Tigo's module level electronics provide a certified solution to UL1741 as a PV Module Level Rapid Shutdown System, for compliance with NEC 2014 & 2017 690.12(D) requirements.
PVI 50/60TL Features
50kW and 60kW, 1000VDC Transformerless String Inverters
Yaskawa Solectria Solar's PVI 50TL and PVI 60TL are grid-tied, transformerless three-phase inverters designed for ground mount, rooftop and carport arrays and can be installed from 0 - 90 degrees. The PVI 50/60TL inverters are the most reliable, efficient and cost effective in their class. They come standard with AC and DC disconnects, three MPPTs, a 15-position string combiner, remote diagnostics, remote firmware upgrades and various protection features. Options include H4 wiring box, shade cover, DC combiner fuse bypass, and web-based monitoring.
Yaskawa Solectria Solar's three-phase string inverters, PVI 23/28/36/50/60TL paired with Tigo's module level electronics provide a certified solution to UL1741 as a PV Module Level Rapid Shutdown System, for compliance with NEC 2014 & 2017 690.12(D) requirements.
PVI 50/60TL Features
- Integrated arc fault protection
- Compliant with UL 1741SA
- 3 MPPTs with 5 inputs each
- Integrated DC and AC disconnects
- AC terminals compatible with copper and aluminum conductors
- Modbus communications
- Internal data logger
- 0 - 90 installation orientation
- Remote firmware upgrades
- Remote diagnostics
- Compatible with certain MLPE for module-level rapid shutdown
- PVI 50TL & PVI 60TL Transformerless 3-Ph String Inverters (pdf) | Download
- PVI 50TL & PVI 60TL Installation and Operation Manual (pdf) | Download
- Interconnection Guidelines for Yaskawa Solectria Solar PVI 23-60TL Inverters (pdf) | Download
- PVI 50-60TL PVsyst Definitions (zip) | Download
- PVI 50TL & PVI 60TL Customer Interface Drawing (pdf) | Download
- PVI 50TL & PVI 60TL Customer Interface Drawing (dwg) | Download
- Shade Cover PVI 50/60TL Assembly (pdf) | Download
- ENC-G5 Quick Start Guide (pdf) | Download
- Modbus Map for PVI-50/60TL Inverters (pdf) | Download
- DC fuse bypass
- H4 wiring box
- Shade cover
- Web-based monitoring
- CSA C22.2#107.1
- FCC Part 15
- IEEE1547a-2014
- UL 1741SA, CA Rule 21
- UL 1741SA-2016
- UL1699B
