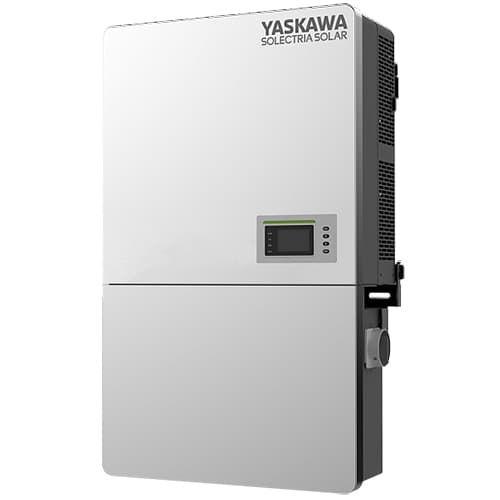

Yaskawa Solectria Solar, PVI-36TL-480-V2, PVI-36TL-480-V2 Inverter, transformerless, 36kW Power Rating, 1000VDC Max Input, 480VAC Output, 10 Year Standard Warranty [MUST ORDER WIRING BOX]. UL1741SB certified Rule 21 compliant.
Manufacturer Info
PVI 23/28/36TL
23kW, 28kW, and 36kW, 1000VDC Transformerless String Inverters
Yaskawa Solectria Solar's PVI 23TL, PVI 28TL, and PVI 36TL are compact, transformerless three-phase inverters with a dual MPP tracker. These inverters come standard with AC and DC disconnects, user-interactive LCD, and an integrated fused string combiner. Its small, lightweight design makes for quick and easy installation and maintenance. These inverters include an enhanced DSP control, comprehensive protection functions, and advanced thermal design enabling highest reliability and uptime. They also come with a standard 10 year warranty. Options include web-based monitoring, shade cover, DC/AC disconnect covers, DC combiners bypass, and roof mount array bracket. Yaskawa Solectria Solar's three-phase string inverters, PVI 23/36/50/60TL paired with Tigo's module level electronics provide a certified solution to UL1741 as a PV Module Level Rapid Shutdown System, for compliance with NEC 2014 & 2017 690.12(D) requirements.
PVI 23TL/28TL/36TL Features
23kW, 28kW, and 36kW, 1000VDC Transformerless String Inverters
Yaskawa Solectria Solar's PVI 23TL, PVI 28TL, and PVI 36TL are compact, transformerless three-phase inverters with a dual MPP tracker. These inverters come standard with AC and DC disconnects, user-interactive LCD, and an integrated fused string combiner. Its small, lightweight design makes for quick and easy installation and maintenance. These inverters include an enhanced DSP control, comprehensive protection functions, and advanced thermal design enabling highest reliability and uptime. They also come with a standard 10 year warranty. Options include web-based monitoring, shade cover, DC/AC disconnect covers, DC combiners bypass, and roof mount array bracket. Yaskawa Solectria Solar's three-phase string inverters, PVI 23/36/50/60TL paired with Tigo's module level electronics provide a certified solution to UL1741 as a PV Module Level Rapid Shutdown System, for compliance with NEC 2014 & 2017 690.12(D) requirements.
PVI 23TL/28TL/36TL Features
- 1000 VDC
- Best-in-class efficiency
- Touch-safe fuses
- Dual & wide MPP tracking zones
- Modbus communications
- Integrated DC fused string combiner
- DC arc-fault protection
- PVI 36TL - UL 1741SA listed
- PVI 36TL Transformerless 3-Ph String Inverters (pdf) | Download
- AC & DC Disconnect Cover PVI 23/28/36TL Option (pdf) | Download
- Bentek Inverter PowerRack (pdf) | Download
- Connecting Third-Party Data Acquisition Systems (DAS) to PVI 23TL, PVI 28TL and PVI 36TL Inverters (pdf) | Download
- EcoMount Inverter Kit (pdf) | Download
- Grid-Tied Photovoltaic Inverters, Combiners, Monitoring, and Accessories Warranty (pdf) | Download
- How to Add an Inverter file to PVsyst (pdf) | Download
- Interconnection Guidelines for Yaskawa Solectria Solar PVI 23-60TL Inverters (pdf) | Download
- PVI 14-36TL Modbus Communications (pdf) | Download
- PVI 14-36TL PVsyst Definitions (zip) | Download
- PVI 23TL & PVI 28TL Installation and Operation Manual - For Inverters with Serial Number Prefixes 101301 to 101302 (Rev G) (pdf) | Download
- PVI 23TL, PVI 28TL, & PVI 36TL Customer Interface Drawing (pdf) | Download
- PVI 23TL, PVI 28TL, & PVI 36TL Customer Interface Drawing (dwg) | Download
- PVI 36TL V2 Installation and Operation Manual (pdf) | Download
- Shade Cover PVI 23/28/36TL Install (pdf) | Download
- Shade Cover PVI 23/28/36TL Option (pdf) | Download
- Shade Cover PVI 23/28/36TL PVEL Final Report Solectria (pdf) | Download
- Shade Cover PVI 23/28/36TL Mechanical (pdf) | Download
- SolrenView Data Logger Datasheet (pdf) | Download
- UL - PVI 23/28 (pdf) | Download
- DC combiners bypass
- DC/AC disconnect covers
- Roof mount array bracket
- Shade cover
- Web-based monitoring
- CSA C22.2#107.1
- FCC part 15 B
- UL 1741/IEEE 1547
