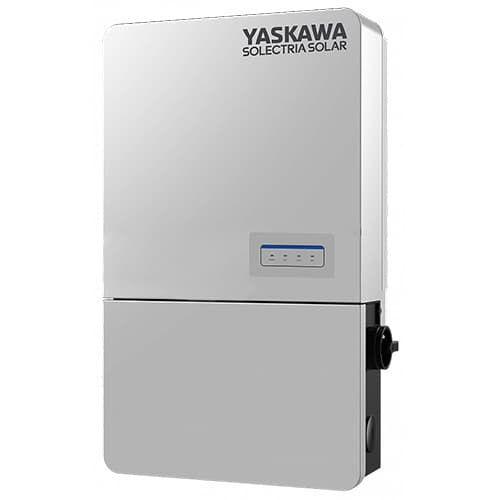

Yaskawa Solectria Solar, PVI-25TL-480-APS20, PVI-25TL-480-R Inverter: transformerless, 25kW Power Rating, 1000VDC Max Input, 480VAC Output,10 Year Standard Warranty, UL 1741SB certified Rule 21 compliant. Included wiring box has 20A Fuses, PLC transmitter and bleed-down circuit for Module-Level Rapid Shutdown with APsmart receivers (RSD-APS, RSD-APS-Q, RSD-APS-D20).
Manufacturer Info
PVI 25TL (480Vac)
25kW, 1000VDC, 480VAC Transformerless String Inverter
Yaskawa Solectria Solar's PVI 25TL is a compact grid-tied, transformerless three-phase string inverter ideal for rooftop, ground mount and carport PV arrays. The PVI 25TL inverter comes standard with AC and DC disconnects, two MPPTs, a six-position fused wiring box with fusing only for the positive conductors (NEC 2017), remote diagnostics, remote firmware upgrades and various protection features. Included is a SunSpec-compliant powerline transmitter to allow customers to meet module-level rapid shutdown requirements easily.
PVI 25TL Features
25kW, 1000VDC, 480VAC Transformerless String Inverter
Yaskawa Solectria Solar's PVI 25TL is a compact grid-tied, transformerless three-phase string inverter ideal for rooftop, ground mount and carport PV arrays. The PVI 25TL inverter comes standard with AC and DC disconnects, two MPPTs, a six-position fused wiring box with fusing only for the positive conductors (NEC 2017), remote diagnostics, remote firmware upgrades and various protection features. Included is a SunSpec-compliant powerline transmitter to allow customers to meet module-level rapid shutdown requirements easily.
PVI 25TL Features
- 1000 VDC; 480Vac
- UL 1741SA listed
- 2 MPPTs with 3 inputs each
- Integrated DC and AC disconnects
- AC terminals compatible with copper and aluminum conductors
- Modbus communications
- 15 - 90 installation orientation
- Remote diagnostics
- Built-in SunSpec-compliant transmitter for Module-Level Rapid Shutdown
- LED indicator lights
- Yaskawa Connect app for system visibility
- PVI 25TL (480Vac) Transformerless String Inverter (pdf) | Download
- PVI 25TL-480 PVsyst Definitions (zip) | Download
- PVI 25TL-480 Installation and Operation Manual (pdf) | Download
- UL - PVI 25TL-480 (pdf) | Download
- PVI 25TL-480 RoofKit (pdf) | Download
- 15 rooftop mounting rack
- Shade cover
- Web-based monitoring
- Certification Agency: CSA
- CSA C22.2#107.1
- FCC part 15 B
- IEEE1547a-2014
- Rule 21, ISO NE
- UL 1699B
- UL 1741/IEEE 1547
- UL 1741SA-2018
