Yaskawa Solectria Solar, PVI-25TL-208, Inverter, Transformerless, 25kW Power Rating, 1000VDC Max Input, 208VAC Output,10 Year Standard Warranty. [MUST ORDER WIREBOX SEPARATELY]. UL 1741SB certified Rule 21 compliant.
The images shown are for illustration purposes only and may not be an exact representation of the product

Yaskawa Solectria Solar, PVI-25TL-208, Inverter, Transformerless, 25kW Power Rating, 1000VDC Max Input, 208VAC Output,10 Year Standard Warranty. [MUST ORDER WIREBOX SEPARATELY]. UL 1741SB certified Rule 21 compliant.

  • Model: PVI-25TL-208
  • Manufactured by: Yaskawa Solectria Solar
  • Condition: New
  • Estimated Delivery: 1 to 2 Weeks
  • Lead Time To Ship May Vary
Price:

$7,900.62 $6,077.40

Manufacturer Info

(image for) Yaskawa Solectria Solar

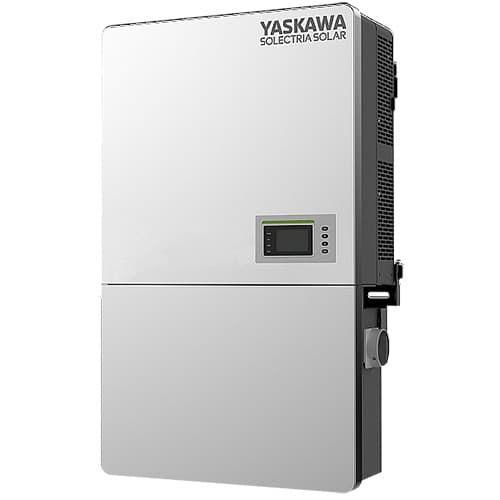

PVI 25TL (208Vac)

25kW, 1000VDC, 208VAC Transformerless String Inverter

Yaskawa Solectria Solar's PVI 25TL is a compact grid-tied, transformerless three-phase string inverter ideal for rooftop, ground mount and carport PV arrays. The PVI 25TL inverter comes standard with AC and DC disconnects, three MPPTs, a six-position fused wiring box with fusing only for the positive conductors (NEC 2017), remote diagnostics, remote firmware upgrades and various protection features. Included is a SunSpec-compliant powerline transmitter to allow customers to meet module-level rapid shutdown requirements easily.

PVI 25TL Features
  • 1000 VDC; 208Vac
  • UL 1741SA listed
  • 3 MPPTs with 2 inputs each
  • Integrated DC and AC disconnects
  • AC terminals compatible with copper and aluminum conductors
  • Modbus communications
  • 15 - 90 installation orientation
  • Remote diagnostics
  • Built-in SunSpec-compliant transmitter for Module-Level Rapid Shutdown
  • Yaskawa Connect app for system visibility
  • PVI 25TL (208Vac) Transformerless String Inverter (pdf) | Download
  • PVI 25TL-480 PVsyst Definitions (zip) | Download
PVI 25TL Options
  • Shade cover
  • Web-based monitoring
Safety Listings & Certifications
  • Certification Agency: CSA
  • CSA C22.2#107.1
  • FCC part 15 B
  • IEEE1547a-2014
  • Rule 21, ISO NE
  • UL 1699B
  • UL 1741/IEEE 1547
  • UL 1741SA-2018
