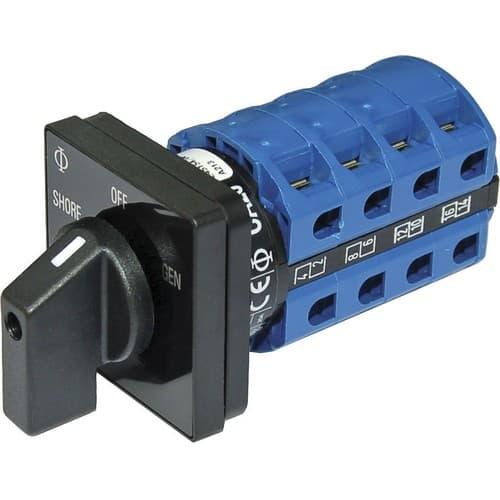

Blue Sea Systems, 6337, AC Rotary Switch - OFF + 2 Positions 120V AC 30A
- Model: 6337
- GTIN: 00632085063375
- Manufactured by: Blue Sea Systems
- Condition: New
-
Estimated Delivery:
Nov 25th - Dec 1st
- Estimated Delivery: 1 to 2 Weeks
- In Stock
- Out of Stock
-
Lead Time To Ship May Vary
Features- Switches between 2 - 120 Volt AC shore power sourcesand 1 - 240 Volt AC source to 2 - 120V AC load groups
- Switches both lines (hot) and neutral
- Compact solution when circuit protection is provided elsewhere
- Allows connecting one of two different AC sources to one circuit
- Mounts in panels up to 0.16" (4.00mm) thick
- Heavy duty industrial rated switch
- Intuitive function - One hand operation
- UL listed
- Cutout Templates
- Mounting Diagram
| Specifications | | Positions | 2 + OFF |
| Source Selection | 3 |
| Nominal Voltage | 120V |
| Poles | 4 |
| Load Circuits Out | 2 |
| Maximum Amperage | 30A |
| Maximum Voltage | 600V AC |
| Source In | 3 |
| Height | 1.89in (48.01 mm) |
| Width | 1.89in (48.01 mm) |
| Depth | 2.98in (75.69 mm) |
| Weight | 0.76lb (0.34 kg) |
| Included With | | 1489 | 120/240V AC Rotary 30A OFF + 2 Sources 2x120V/1x240V |
| 8386 | AC Rotary Switch Panel 30 Ampere 2 positions + OFF, 4 Pole |
