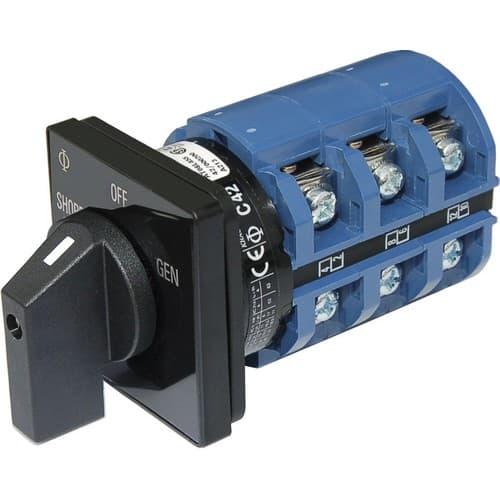

Blue Sea Systems, 9019, AC Rotary Switch - OFF + 2 Positions 240V AC 65A
- Model: 9019
- GTIN: 00632085090197
- Manufactured by: Blue Sea Systems
- Condition: New
-
Estimated Delivery:
Nov 25th - Dec 1st
- Estimated Delivery: 1 to 2 Weeks
- In Stock
- Out of Stock
-
Lead Time To Ship May Vary
Features- Switches 2 - 120/240 Volt AC sources
- Compact solution when circuit protection is provided elsewhere
- Allows connecting one of two different AC sources to one circuit
- Mounts in panels up to 0.16" (4.00mm) thick
- Heavy duty industrial rated switch
- Intuitive function - One hand operation
- UL listed
- Cutout Templates
- Mounting Diagram
| Specifications | | Positions | 2 + OFF |
| Source Selection | 2 |
| Nominal Voltage | 240V |
| Poles | 3 |
| Load Circuits Out | 1 |
| Maximum Amperage | 65A |
| Maximum Voltage | 600V AC |
| Source In | 2 |
| Height | 2.52in (64.01 mm) |
| Width | 2.52in (64.01 mm) |
| Depth | 1.41in (35.81 mm) |
| Weight | 1.41lb (0.64 kg) |
| Included With | | 1487 | 120/240V AC Rotary 65A OFF + 2 Sources |
| 8363 | AC Rotary Switch Panel 65 Ampere 2 positions + OFF, 3 Pole |
