Blue Sea Systems, 4181, 15A Push Button Backlit Switch OFF-(ON)
- Model: 4181
- GTIN: 00632085041816
- Manufactured by: Blue Sea Systems
- Condition: New
-
Estimated Delivery:
Nov 22nd - Nov 28th
- Estimated Delivery: 1 to 2 Weeks
- In Stock
- Out of Stock
-
Lead Time To Ship May Vary

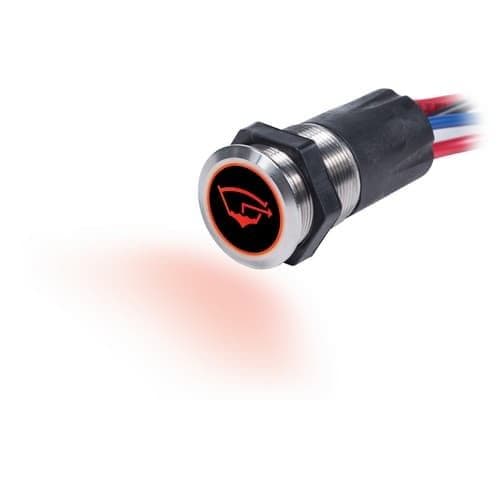

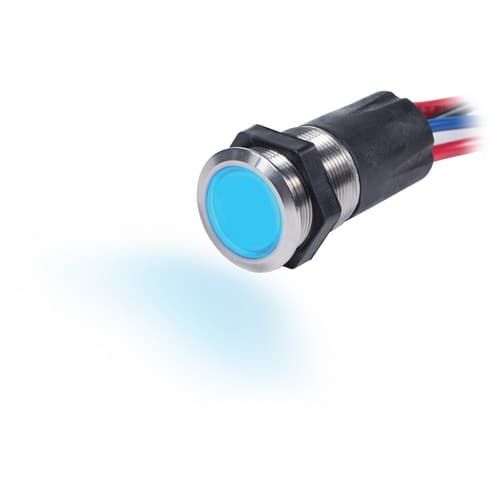

Features- Backlit button is blue when OFF and red when ON
- Five ICON labels included: Accessory, Lights, Anchor Light, Running Light, and Bilge Pump
- Additional 50 ICON label kit sold separately
- Dimensioned Drawing | Download
| Specifications |
|---|
| Action | OFF-(ON) |
| Amperage | 15A @ 12V DC |
| Nominal Voltage | 12V DC |
| Maximum Voltage | 15V DC |
| Maximum LED Operating Current | 20mA |
| Max Panel Thickness | 0.24in (6.1 mm) |
| Mounting Hole | 7/8" (22mm) |
| Switching Cycles | 10,000 |
| Temperature Range | -20°C to 55°C |
| Termination | 3" - Bare Wire Pigtail |
| Wire Size | Black & Blue Wires 18 AWGRed & Orange Wires 16 AWG |
| Weight | 0.35lb (0.16 kg) |
| Optional Accessories |
|---|
| 4230 | Push Button Switch Label Kit |
