The images shown are for illustration purposes only and may not be an exact representation of the product

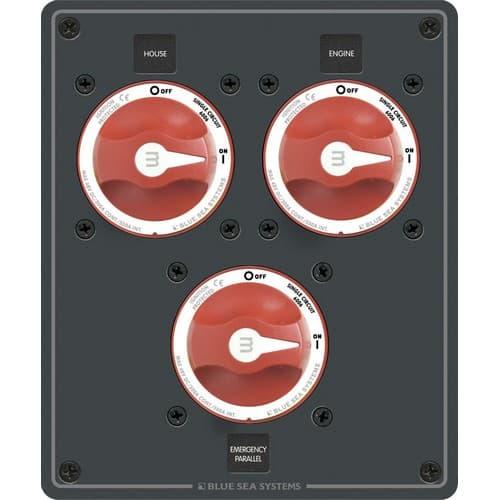

Blue Sea Systems, 8280, Traditional Metal Dual Bank Battery Management Panel
- Model: 8280
- GTIN: 00632085082802
- Manufactured by: Blue Sea Systems
- Condition: New
-
Estimated Delivery:
Nov 24th - Nov 30th
- Estimated Delivery: 1 to 2 Weeks
- In Stock
- Out of Stock
-
Lead Time To Ship May Vary
Features- Includes [3] m-Series, ON-OFF Battery Switches PN 6006
- Isolates Engine circuit from House circuit
- Allows independent battery control
- Allows emergency cross connect between isolated battery banks
- The additionan Automatic Charging Relay (ACR) automates charging twobattery banks
- Protects electronics from sags and spikes caused by engine cranking
- Ignition protected - Safe for installation aboard gasoline-powered boats
- Cutout Templates
- Instructions
| Specifications | | Maximum Voltage | 48V DC |
| Continuous Rating | 300A |
| Intermittent Rating | 500A (5 min) |
| Cranking Rating 10 sec | 1500A |
| Cranking Rating 1 min | 775A |
| Height | 7.50in (190.5 mm) |
| Width | 6.25in (158.75 mm) |
| Depth | 2.25in (57.15 mm) |
| Weight | 3.20lb (1.45 kg) |
| Included | | Qty | PN | Product |
| 3 | 6006 | m-Series Mini On-Off Battery Switch with Knob - Red |
