Features

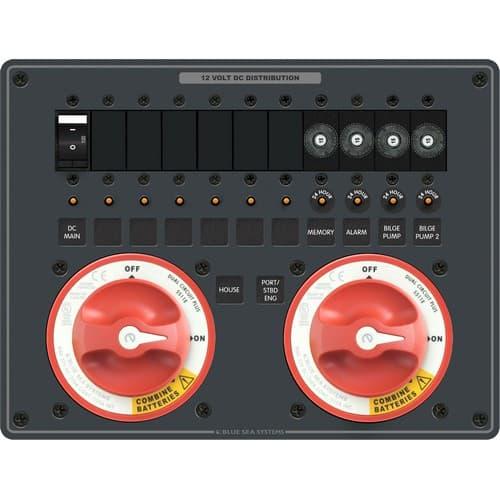

- Includes [2] e-Series, Dual Circuit Plus Battery Switches PN 5511e
- Designed for twin engine configurations
- Provides high ampere load protection
- Isolates the Engine circuit from the House circuit
- Allows independent battery control
- Provides 24-hour circuit protection
- Allows emergency cross connect between isolated battery banks
- Protects electronics from sags and spikes caused by engine cranking
- The addition of two Automatic Charging Relays (ACR) automates charging three battery banks
- Ignition protected - Safe for installation aboard gasoline-powered boats
- Includes 4218 - Square Format Labels and 4140 - 24 Hour Round Labels
- Cutout Templates
- Instructions
| Specifications | |
|---|---|
| Positions | 11 |
| Nominal Voltage | 12V DC |
| Maximum Voltage | 24V DC |
| Continuous Rating | 350A |
| Intermittent Rating | 525A (5 min) |
| Cranking Rating 10 sec | 1000A |
| Cranking Rating 1 min | 750A |
| Height | 8.00in (203.2 mm) |
| Width | 10.50in (266.7 mm) |
| Depth | 3.50in (88.9 mm) |
| Weight | 4.42lb (2 kg) |
| Included | ||
|---|---|---|
| Qty | PN | Product |
| 2 | 5511e | e-Series Dual Circuit Plus Battery Switch |
| 4 | 7056 | Push Button Reset Only Quick Connect Circuit Breaker - 15 Amps |
| 1 | 7549 | C-Series Flat Rocker Circuit Breaker - Single Pole 100A |
