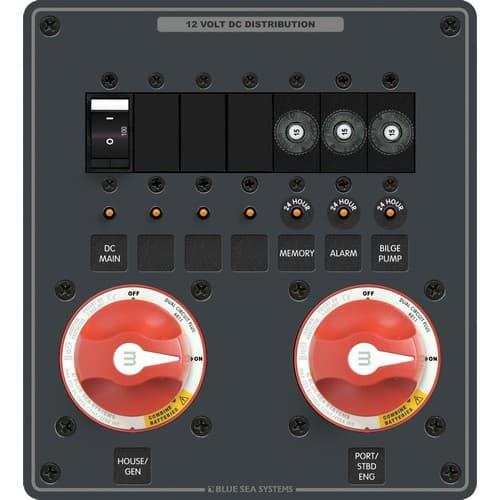

The images shown are for illustration purposes only and may not be an exact representation of the product
Blue Sea Systems, 8689, Triple Battery Bank Management Panel
- Model: 8689
- GTIN: 00632085086893
- Manufactured by: Blue Sea Systems
- Condition: New
-
Estimated Delivery:
Nov 24th - Nov 30th
- Estimated Delivery: 1 to 2 Weeks
- In Stock
- Out of Stock
-
Lead Time To Ship May Vary
Features- Designed for single engine configurations
- Provides high ampere load protection
- Isolates the Engine circuit from the House circuit
- Allows independent battery control
- Provides 24-hour circuit protection
- Allows emergency cross connect between isolated battery banks
- Protects electronics from sags and spikes caused by engine cranking
- The addition of two Automatic Charging Relays (ACR) automates charging three battery banks
- Ignition protected - Safe for installation aboard gasoline-powered boats
- Cutout Templates
- Instructions
| Specifications | | Positions | 7 |
| Nominal Voltage | 12V DC |
| Maximum Voltage | 32V DC |
| Continuous Rating | 300A |
| Intermittent Rating | 450A (5 min) |
| Cranking Rating 10 sec | 1000A |
| Cranking Rating 1 min | 650A |
| Height | 7.25in (184.15 mm) |
| Width | 7.25in (184.15 mm) |
| Depth | 3.25in (82.55 mm) |
| Weight | 3.46lb (1.57 kg) |
| Included | | Qty | PN | Product |
| 2 | 6011 | m-Series Mini Dual Circuit Plus Battery Switch - Red |
| 3 | 7056 | Push Button Reset Only Quick Connect Circuit Breaker - 15 Amps |
| 1 | 7549 | C-Series Flat Rocker Circuit Breaker - Single Pole 100A |
| Optional Accessories | | 4111 | 360 Panel Adapter for Push Button Reset Only |
