Features

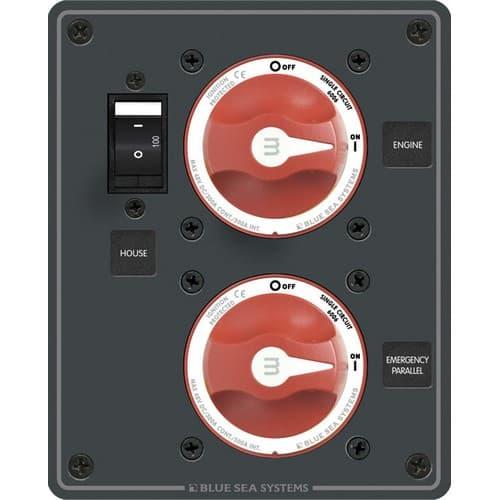

- Includes [2] m-Series, ON-OFF Battery Switches PN 6006
- Isolates Engine circuit from House circuit
- Allows independent battery control
- Allows emergency cross connect between isolated battery banks
- The additionan Automatic Charging Relay (ACR) automates charging twobattery banks
- Protects electronics from sags and spikes caused by engine cranking
- Ignition protected - Safe for installation aboard gasoline-powered boats
- Cutout Templates
| Specifications | |
|---|---|
| Maximum Voltage | 32V DC |
| Continuous Rating | 300A |
| Intermittent Rating | 500A (5 min) |
| Cranking Rating 10 sec | 1500A |
| Cranking Rating 1 min | 775A |
| Height | 6.50in (165.1 mm) |
| Width | 5.25in (133.35 mm) |
| Depth | 3.00in (76.2 mm) |
| Weight | 2.20lb (1 kg) |
| Included | ||
|---|---|---|
| Qty | PN | Product |
| 2 | 6006 | m-Series Mini On-Off Battery Switch with Knob - Red |
| 1 | 7549 | C-Series Flat Rocker Circuit Breaker - Single Pole 100A |
