Features

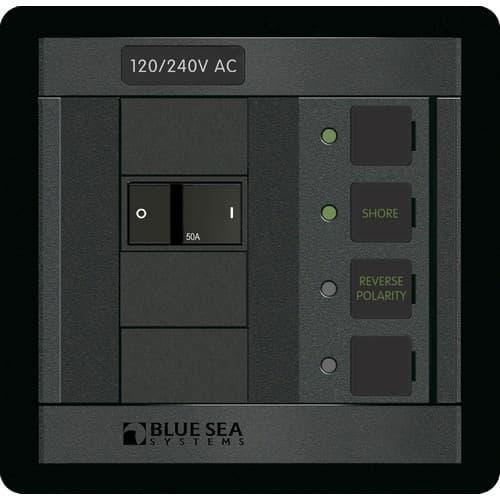

- One 50 Ampere triple-pole C-Series circuit breaker installed
- Backlit circuit label positions
- Flexible 360 Panel System configuration provides spare rocker apertures which may be used for single-pole 120 Volt AC or double-pole 240 Volt AC Branch circuits
- Cutout Templates
- Wiring Schematic
| Specifications | |
|---|---|
| Positions | 1 |
| Nominal Voltage | 120/240V AC |
| Backlit Label | Green LED |
| Height | 4.75in (120.65 mm) |
| Width | 4.88in (123.95 mm) |
| Depth | 3.00in (76.2 mm) |
| Weight | 1.80lb (0.82 kg) |
| Included | ||
|---|---|---|
| Qty | PN | Product |
| 1 | 7565 | C-Series Flat Rocker Circuit Breaker - Triple Pole 50A AC (Main) |
| Optional Accessories | |
|---|---|
| 1331 | AC Insulating Cover 1 Module |
