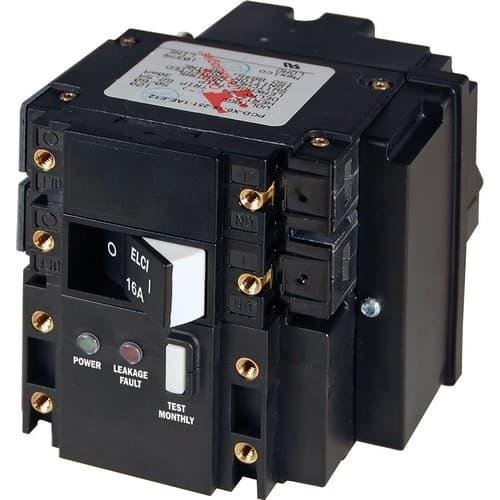

Blue Sea Systems, 3091, C-Series ELCI Main Circuit Breaker - Double Pole 230V AC 16A
Manufacturer Info
Features
- Trips on short circuit, overload, or leakage to ground
- Front panel mount installed in a power distribution panel
- Cutout Templates
Specifications | |
---|---|
Amperage | 16A |
Actuator Style | Flat Rocker |
Nominal Voltage | 230V AC per pole |
Poles | 2 |
Ignition Protected | Yes |
Circuit Breaker Type | Magnetic Hydraulic - trip free |
Interrupt Capacity | 5000A |
Minimum Operating Temperature | -35 C |
Maximum Operating Temperature | 66 C |
Leakage Trip Amps | 30mA |
Mounting Screw | #6-32 Stainless Steel |
Mounting Screw Torque | 6 in-lb (0.68 Nm) |
Switching Cycles | 10000 |
Weight | 0.85lb (0.39 kg) |
