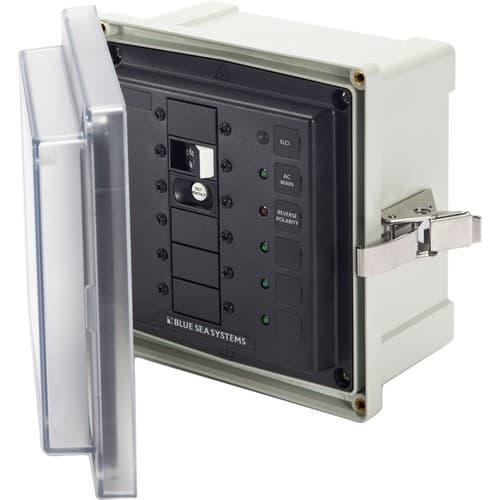

Panel enclosure for ELCI Main circuit breakers and otherlarge frame devices. Meets ABYC E-11 when used with anELCI Main circuit breaker and mounted within 10 feet ofthe shore power inlet

Features

• Includes one 120V AC / 30A ELCI Main and three blank positions
• Blank apertures for custom breaker loading
• Glass filled polycarbonate mounting box
• Clear cover allows easy view of circuit breaker status
• Overlapping cover for strength and increased gasket protection
• Oversized, formed in place seamless PUR gasket
• Easily removable stainless steel hinge pin for unobstructed installation
• Stainless steel latch secures cover without penetrating the enclosure
• Blank circuit positions accommodate Carling Technologies A- and C- Series Flat Rocker and ELCI Main circuit breakers
• Stainless steel mounting hardware included
• Includes waterproof glands
• LED lights for back lighting and ON indication
• Instructions
• Wiring Schematic

Specifications
Minimum Operating Temperature	-40 C
Maximum Operating Temperature	85 C
Cover Screws and Hardware	10-32 Stainless Steel
Enclosure Size	6.0" x 6.0" x 4.0"(152mm x 152mm x 102mm)
Exterior Overall Dimensions	7.6" x 7.4" x 4.7"(192mm x 188mm x 120mm)
Mounting Hardware	1/4" Diameter, #12 (6 mm)
Weight	4.15lb (1.88 kg)

Included
Qty	PN	Product
1	4206	Basic AC Label Kit - 30 Black Square Labels
1	6520-0013	AC MAIN
1	6520-0580	ELCI
2	3124	SMS Enclosure Gland - PG7 for #14 to #10 Wire
3	3125	SMS Enclosure Gland PG16
1	3102100	A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A (MAIN)
4	8034	LED - 120V AC Green (ON Indicating)
1	8066	LED - 120V AC Red (Reverse Polarity Indicating)

Optional Accessories
SMS Enclosure Gland PG29
