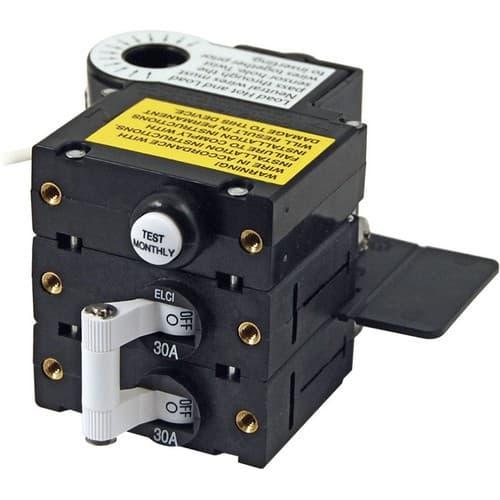

Blue Sea Systems, 3106100, A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A
Manufacturer Info
Features
- Trips on short circuit, overload, or leakage to ground
- Front panel mount - installed in a power distribution panel

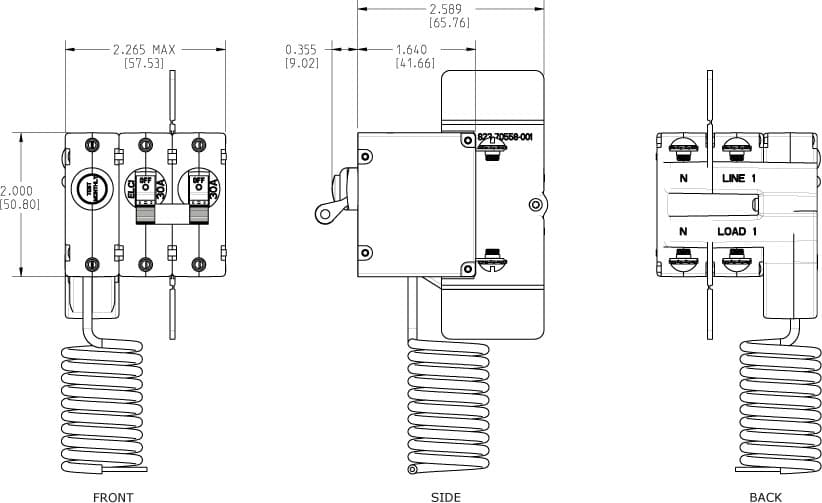

- Dimensioned Drawing
- Instructions
| Specifications | |
|---|---|
| Amperage | 30A |
| Color | White |
| Actuator Style | Toggle |
| Poles | 2 |
| Ignition Protected | Yes |
| Maximum Voltage | 240V AC120V AC per pole |
| Circuit Breaker Type | Magnetic Hydraulic - trip free |
| Interrupt Capacity | 5000A |
| Minimum Operating Temperature | -35 C |
| Maximum Operating Temperature | 66 C |
| Leakage Trip Amps | 30mA |
| Mounting Screw | #6-32 Stainless Steel |
| Mounting Screw Torque | 6 in-lb (0.68 Nm) |
| Switching Cycles | 10000 |
| Weight | 0.85lb (0.39 kg) |
