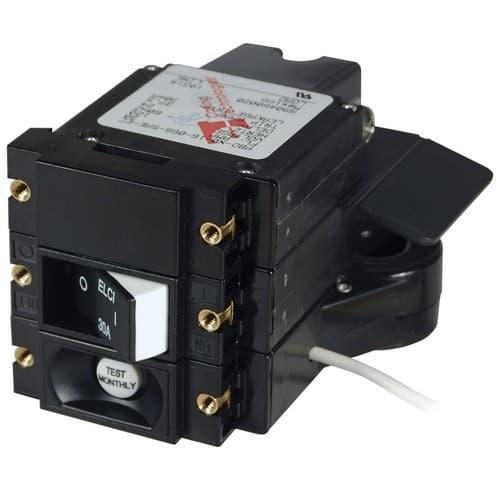

Blue Sea Systems, 3102100, A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A
Manufacturer Info
Features
- Provides over current and leakage protection per ABYC E-11 for whole boat shore power protection
- Meets UL 1500 external ignition protection requirements
- Trips on short circuit, overload, or leakage to ground

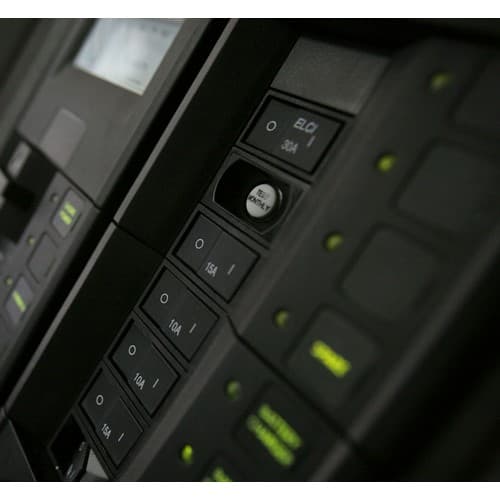

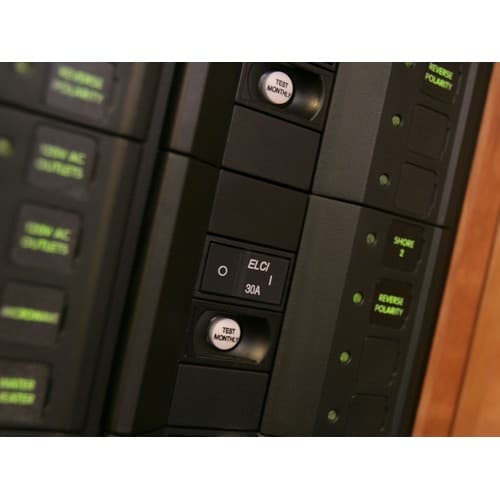

- Front panel mount - installed in a power distribution panel
- Instructions
| Specifications | |
|---|---|
| Amperage | 30A |
| Actuator Style | Flat Rocker |
| Poles | 2 |
| Ignition Protected | Yes |
| Maximum Voltage | 240V AC120V AC per pole |
| Circuit Breaker Type | Magnetic Hydraulic - trip free |
| Interrupt Capacity | 5000A |
| Minimum Operating Temperature | -35 C |
| Maximum Operating Temperature | 66 C |
| Leakage Trip Amps | 30mA |
| Mounting Screw | #6-32 Stainless Steel |
| Mounting Screw Torque | 6 in-lb (0.68 Nm) |
| Switching Cycles | 10000 |
| Weight | 0.85lb (0.39 kg) |
