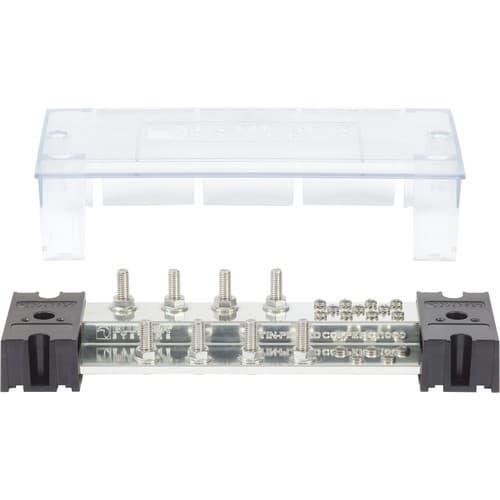

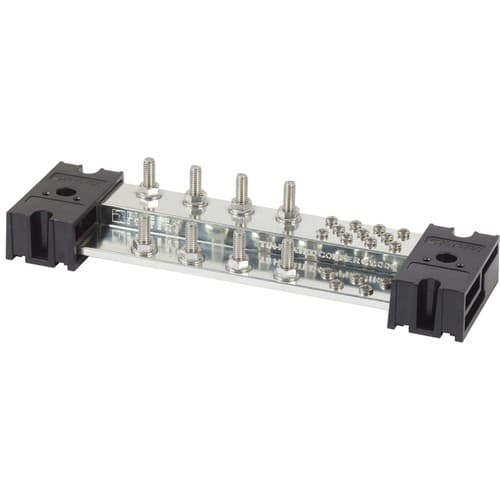

Complex wiring systems require a single point to consolidate large and small conductors. The PowerBar 1000 offers a 1,000 Amp busbar with various size studs and screws to connect conductors and fuse blocks.
- 1,000 Amp busbar for large complex wiring systems
- Tin plated pure electrical copper for maximum conductivity
- Stepped bus design offers two elevations for conductors which doubles the density of the wire loom compared to traditional bus bars
- Busbar and fuse block elevations match common fuse blocks allowing for multiple fuse block attachment, eliminating the need for connecting cables
- One-piece serrated flange nuts ensure correct and secure connections
- Stainless steel 8-32 screws with captive lock washers for securing smaller gauge wires
- Busbar may be cut to a shorter length to accommodate constricted spaces
- Bi-directional busbar end caps allow the ganging of additional busbars
- Snap on insulating cover meets ABYC and USCG requirements and includes label recess
- Dimensioned Drawing
| Specifications | |
|---|---|
| Maximum Voltage | 150V |
| Number of Terminal Studs | 8 |
| Terminal Type | 5/16" - 18 Stud |
| Continuous Rating | 1000A |
| Bus Material | Tin-Plated Copper C11000 |
| Mounting Holes | Accepts #10 (M5) Screws |
| Weight | 6.00lb (2.72 kg) |
