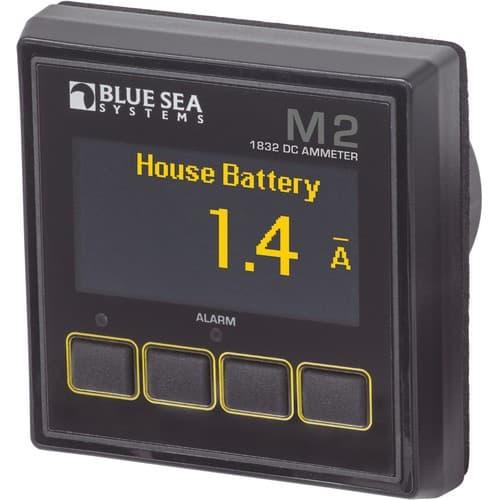

Monitors DC Amperage with large, bright display. Accurately measure and monitor the amperage ofyour DC system. (measures 2 circuits) Supports programmable shunt ratios.
Features
Features
- Auto-dimming, bright OLED display is easy to read
- Easy to adjust
- 80dB alarm on all models
- Isolated MOSFET relay
- Cutout Templates
- Mounting Diagram
- Quick Start Installation Guide
- Instructions
| Specifications | |
|---|---|
| Meter | Current |
| Function | to 5000A |
| Alarms | High Current |
| Current Range | -500 to 500A |
| Display Size | 55mm x 28mm |
| Input Voltage | 7-70V DC |
| Maximum Power Consumption | 1.00 Watt |
| Minimum Power Consumption | 0.3 Watt |
| Weight | 0.25lb (0.11 kg) |
| Included | ||
|---|---|---|
| Qty | PN | Product |
| 1 | 8255 | DC Digital Current Shunt - 500A |
| Optional Accessories | |
|---|---|
| Any Alarms | |
| 1525 | 360 Panel - M2 Monitor Blank |
| 7713 | ML-RBS Remote Battery Switch with Manual Control Auto-Release - 12V |
| ML-RBS Remote Battery Switch with Manual Control Auto-Release - 24V | |
| 8033 | LED - 12/24V DC Amber |
| 8171 | LED - 12/24V DC Red |
| 8172 | LED - 12/24V DC Green |
