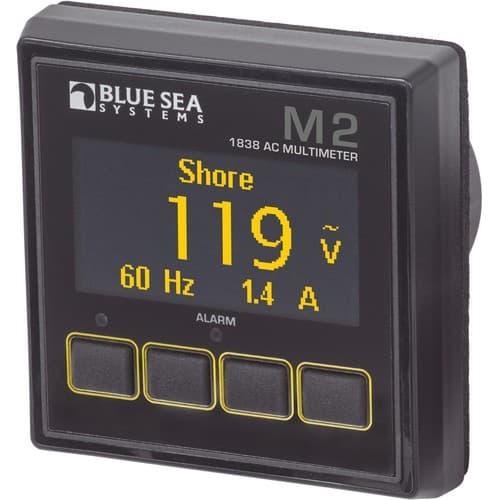

Monitors AC Amps, Volts, Hzs on large, bright display. Supports programmable current transformer ratios. Accurately measure and monitor AC amperage,voltage and Hz. (measures 2 voltages and 2 circuits)
Features
Features
- Auto-dimming, bright OLED display is easy to read
- Easy to adjust
- 80dB alarm on all models
- Isolated MOSFET relay
- Cutout Templates
- Dimensioned Drawing
- Mounting Diagram
- Instructions
| Specifications | |
|---|---|
| Meter | CurrentFrequencyPowerVoltage |
| Function | 50 to 250Vto 300A |
| Resolution | 1V AC |
| Alarms | High/Low CurrentHigh/Low FrequencyHigh/Low Voltage |
| Current Accuracy | 2.0% |
| Display Size | 55mm x 28mm |
| Frequency Range | 40-90Hz |
| Frequency Resolution | 1Hz |
| Input Voltage | 7-70V DC |
| Maximum Power Consumption | 1.00 Watt |
| Minimum Power Consumption | 0.3 Watt |
| Power Range | 0-45kW |
| Power Resolution | 10W (0-9990W)0.1kW (10-45kW) |
| Voltage Accuracy | 2.0% |
| Weight | 0.25lb (0.11 kg) |
| Included | ||
|---|---|---|
| Qty | PN | Product |
| 1 | 8256 | AC Current Transformer Coil - 150A AC/50mA AC |
| Optional Accessories | |
|---|---|
| Any Alarms | |
| 1525 | 360 Panel - M2 Monitor Blank |
| 7713 | ML-RBS Remote Battery Switch with Manual Control Auto-Release - 12V |
| ML-RBS Remote Battery Switch with Manual Control Auto-Release - 24V | |
| 8033 | LED - 12/24V DC Amber |
| 8171 | LED - 12/24V DC Red |
| 8172 | LED - 12/24V DC Green |
