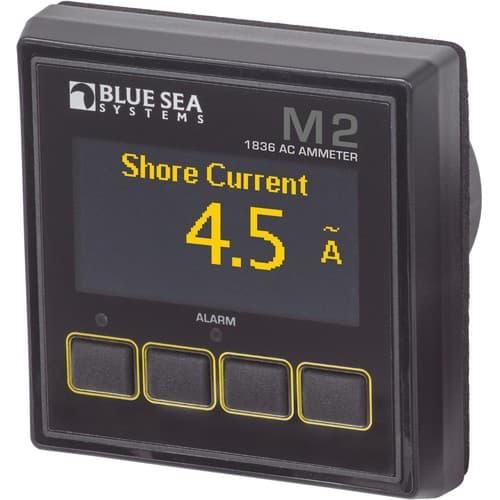

Monitors AC Amperage on large, bright display. Supports programmable current transformer ratios. Accurately measure and alarm the amperage of your AC system. (measures 2 independent circuits)
Features
Features
- Auto-dimming, bright OLED display is easy to read
- Easy to adjust
- 80dB alarm on all models
- Isolated MOSFET relay
- Cutout Templates
- Mounting Diagram
- Instructions
- Quick Start Installation Guide
| Specifications | |
|---|---|
| Meter | Current |
| Function | to 300A |
| Alarms | High/Low Current |
| Current Accuracy | 2.0% |
| Current Range | 0-150A |
| Display Size | 55mm x 28mm |
| Input Voltage | 7-70V DC |
| Maximum Power Consumption | 1.00 Watt |
| Minimum Power Consumption | 0.3 Watt |
| Weight | 0.25lb (0.11 kg) |
| Optional Accessories | |
|---|---|
| 8256 | AC Current Transformer Coil - 150A AC/50mA AC |
| 1829 | AC Current Transformer - 300A AC/50mA AC |
| 1525 | 360 Panel - M2 Monitor Blank |
| 7713 | ML-RBS Remote Battery Switch with Manual Control Auto-Release - 12V |
| ML-RBS Remote Battery Switch with Manual Control Auto-Release - 24V | |
| 8033 | LED - 12/24V DC Amber |
| 8171 | LED - 12/24V DC Red |
| 8172 | LED - 12/24V DC Green |
