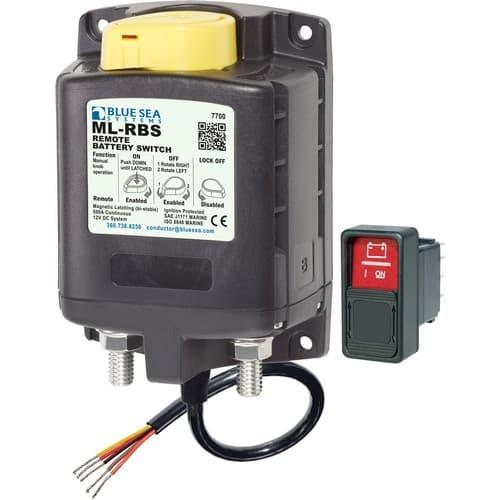

Blue Sea Systems, 7700, ML-RBS Remote Battery Switch with Manual Control - 12V DC 500A
- Model: 7700
- GTIN: 00632085077006
- Manufactured by: Blue Sea Systems
- Condition: New
-
Estimated Delivery:
Nov 22nd - Nov 28th
- Estimated Delivery: 1 to 2 Weeks
- In Stock
- Out of Stock
-
Lead Time To Ship May Vary
500 Amp magnetic latching switch provides high amperageswitching under load, manually or from remote locations Features- Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing
- LED output to remotely indicate switch state - requires optional LED
- 3 /8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
- 7 /8" (22 mm) stud length accepts multiple cable terminals
- Label recesses for circuit identification
- Silver alloy contacts provide high reliability for switching live loads
- Instructions
| Specifications | | Control Circuit Connection | Tinned Wire |
| Nominal Voltage | 12V DC |
| Manual Control | Yes |
| Coil Function | Bi-Stable |
| Mounting | #10 |
| Amperage Operating Current | 0mA |
| Amperage Operating Current when changing state | <7A (40 ms) |
| Terminal Stud Torque | 140 in-lb (15.82 Nm) |
| Control Circuit Voltage | 10.1 to 16.5V DC |
| Continuous Rating | 500A |
| Intermittent Rating | 700A (5 min) |
| Cranking Rating 30 sec | 1450A DC |
| Minimum Operating Temperature | -10 C |
| Maximum Operating Temperature | 50 C |
| Cable Size to Meet Ratings | 2x (4/0) |
| Live Current Switching | 300A @ 12V DC |
| Master Control Switch Capability | No |
| Mechanical Endurance | 100,000 Cycles |
| Terminal Ring Diameter Clearance | 1.18in (29.97 mm) |
| Terminal Stud Length | 0.875in (22.23 mm) |
| Terminal Stud Size | 3/8" - 16 (M10) |
| Weight | 1.75lb (0.79 kg) |
| Included | | Qty | PN | Product |
| 1 | 2145 | SPDT Remote Control Contura Switch - (ON)-OFF-(ON) |
| Optional Accessories | | 1147 | Remote Control Panel |
| 1148 | Remote Control Panel |
| 9160 | ML Series Link Bus |
