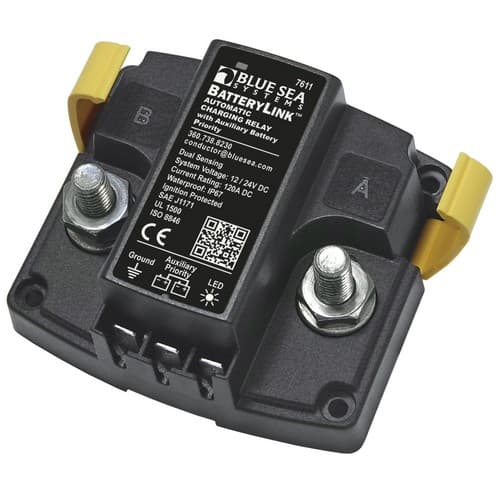

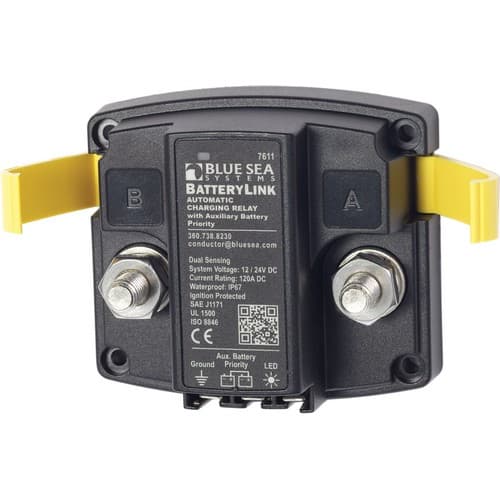

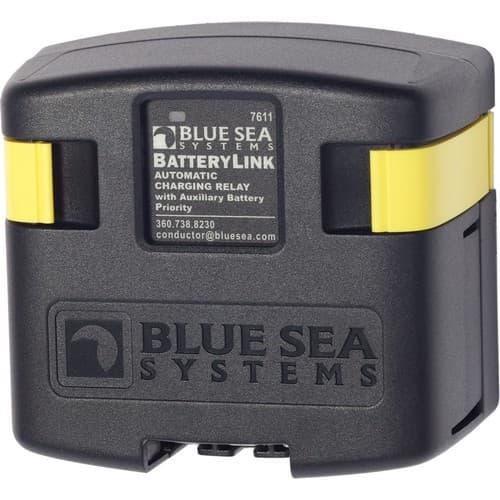

Blue Sea Systems, 7611, BatteryLink Automatic Charging Relay - 12V/24V DC 120A
Manufacturer Info

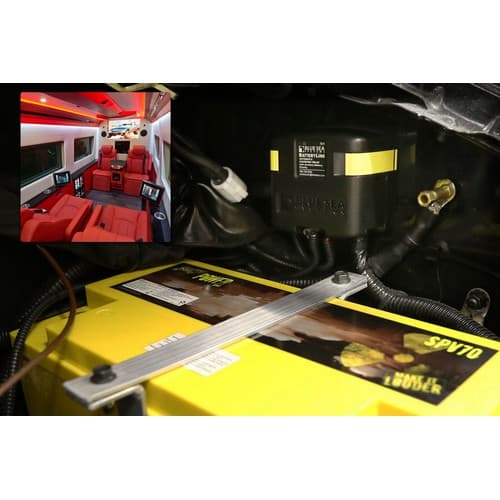

Automatically shares single source of charge with Auxiliary Battery
Features
Features
- 120 Amp continuous rating
- 12/24V DC auto ranging voltage input
- Senses charging on two battery banks
- Side and bottom knockouts for cable connections
- Clip-on cover insulates terminal connections
- 7/8" (22 mm) stud length to accept multiple cable terminals
- Integrated LED indicates ACR status
- 1/4" x .032" male quick connect terminals for ground and optional features
- Largest battery bank cannot exceed Group 27

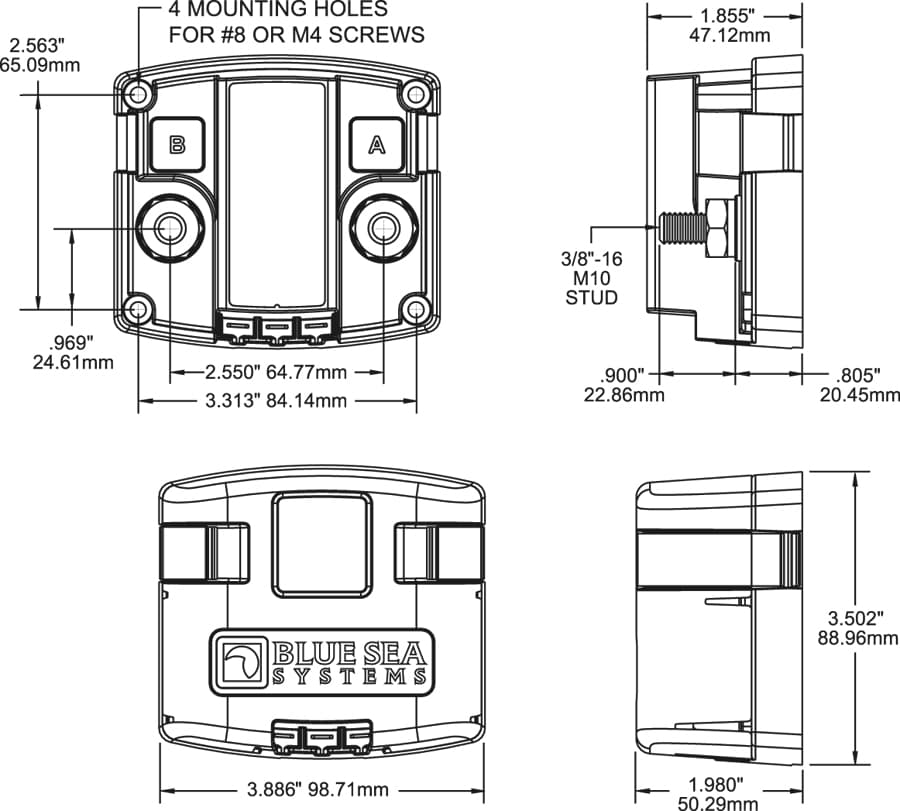

- Dimensioned Drawing
- Instructions
- Optional Auxiliary Battery Priority connection shares the alternator charge with the Auxiliary battery longer when the engine is running to allow the use of auxiliary loads for an extended period of time
- Remote LED remotely indicates ACR states - requires optional LED
| Specifications | |
|---|---|
| Nominal Voltage | 12V DC24V DC |
| Auxiliary Battery Priority | Yes |
| Amperage Operating Current | 175mA @ 12V (Combine)115mA @ 24V (Combine)15mA (Open) |
| Continuous Rating | 120A |
| Intermittent Rating | 210A (5 min) |
| Maximum Cable Size | 1/0 AWG |
| Maximum Torque | 140 in-lb (15.82 Nm) |
| Terminal Stud Size | 3/8" - 16 (M10) |
| Relay Contact Position | |
| Combine 30 sec | 13.6V @ 12V27.2V @ 24V |
| Combine 2 Min | 13.0V @ 12V DC26.0V @ 24V DC |
| Over Voltage Lockout | 16.0V @ 12 V32.0V @ 24 V |
| Open Low | 12.75V @ 12 V25.5V @ 24 V |
| Auxiliary Priority | |
| Open Low | 12.25V @ 12V24.5V @ 24V |
| Weight | 1.25lb (0.57 kg) |
