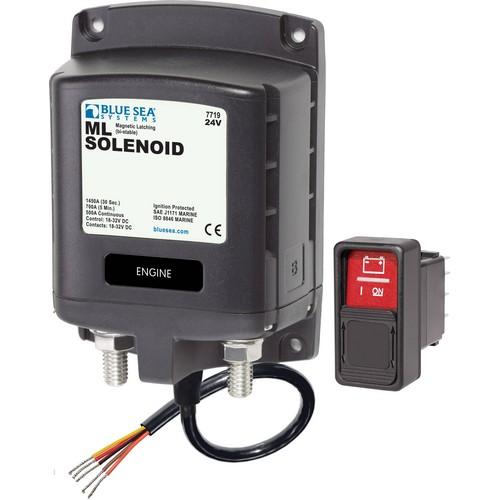

Solenoid ML 24V
- For applications where sustained control signals are needed to emulate a Normally Open relay with a lower current draw
- Silver alloy contacts provide high reliability for switching live loads
- LED output to remotely indicate switch state - requires optional LED or Remote Control Contura Switch with integrated LED (included in retail package)
- 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
- One-piece stainless flange nuts for safe and secure connections
- Label recesses for circuit identification
- Retail package includes Remote Control Contura Switch
- Instructions | Download
- Dimension Drawing | Download
| Specifications | |
|---|---|
| Control Circuit Voltage | 20.2 to 32.9V DC |
| Control Circuit Connection | Tinned Wire |
| Nominal Voltage | 24V DC |
| Manual Control | Yes |
| Coil Function | Auto-Releasing |
| Mounting | #10 |
| Amperage Operating Current | 8mA when OFF 13mA when ON |
| Amperage Operating Current when changing state | <4A (40 ms) |
| Terminal Stud Torque | 140 in-lb (15.82 Nm) |
| Continuous Rating | 500A |
| Intermittent Rating | 700A (5 min) |
| Cranking Rating 30 sec | 1450A DC |
| Minimum Operating Temperature | -10° C |
| Maximum Operating Temperature | 60° C |
| Cable Size to Meet Ratings | 2x (4/0) |
| Live Current Switching | 300A @ 12V DC |
| Master Control Switch Capability | Yes |
| Mechanical Endurance | 100,000 Cycles |
| Switching Cycles | 100000 |
| Terminal Ring Diameter Clearance | 1.18in (29.97 mm) |
| Terminal Stud Length | 0.875in (22.23 mm) |
| Terminal Stud Size | 3/8" - 16 (M10) |
| Included | ||
|---|---|---|
| Qty | PN | Product |
| 1 | 2155 | SPDT Remote Control Contura Switch - ON-ON |
| Optional Accessories | ||
|---|---|---|
| 1147 | Remote Control Panel | |
| 1148 | Remote Control Panel | |
| 9160 | ML Series Link Bus |
