Blue Sea Systems, 7718B, Solenoid ML 12V

Model: 7718B
Manufactured by: Blue Sea Systems
Condition: New
Estimated Delivery: Apr 3rd - Apr 9th
Estimated Delivery: 1 to 2 Weeks
In Stock
Out of Stock
Lead Time To Ship May Vary

Price:

$245.28 $188.68

Manufacturer Info

Other products

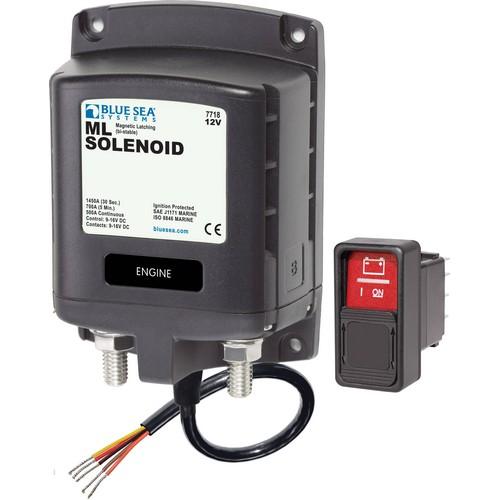

Solenoid ML 12V

For applications where sustained control signals are needed to emulate a Normally Open relay with a lower current draw
Silver alloy contacts provide high reliability for switching live loads
LED output to remotely indicate switch state - requires optional LED or Remote Control Contura Switch with integrated LED (included in retail package)
3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
One-piece stainless flange nuts for safe and secure connections
Label recesses for circuit identification
Retail package includes Remote Control Contura Switch
Instructions | Download
Dimension Drawing | Download

Specifications
Control Circuit Voltage	10.1 to 16.5V DC
Control Circuit Connection	Tinned Wire
Nominal Voltage	12V DC
Coil Function	Auto-Releasing
Mounting	#10
Amperage Operating Current	8mA when OFF 13mA when ON
Amperage Operating Current when changing state	<7A (40 ms)
Terminal Stud Torque	140 in-lb (15.82 Nm)
Continuous Rating	500A
Intermittent Rating	700A (5 min)
Cranking Rating 30 sec	1450A DC
Minimum Operating Temperature	-10° C
Maximum Operating Temperature	60° C
Cable Size to Meet Ratings	2x (4/0)
Live Current Switching	300A @ 12V DC
Master Control Switch Capability	Yes
Mechanical Endurance	100,000 Cycles
Terminal Ring Diameter Clearance	1.18in (29.97 mm)
Terminal Stud Length	0.875in (22.23 mm)
Terminal Stud Size	3/8" - 16 (M10)

Included
Qty	PN	Product
1	2155	SPDT Remote Control Contura Switch - ON-ON

Optional Accessories
	1520	360 Panel Blank ML-Contura Switch
	9160	ML Series Link Bus
