Blue Sea Systems, 8413, Traditional Metal AC / DC Panel - 22 Positions + Mains, M2 Vessel Systems Monitor
Manufacturer Info

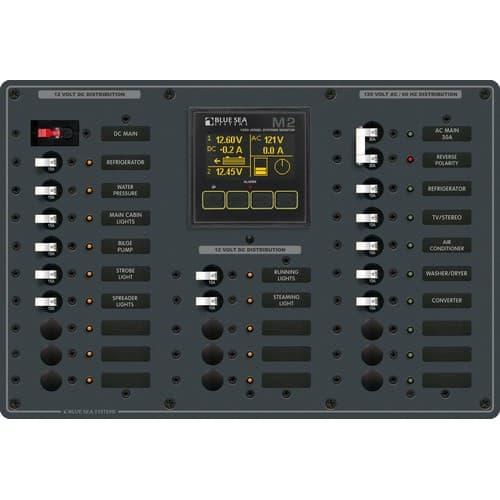

Combines AC and DC switching, circuit protection, source selection and monitoring into a single panel
- Includes M2 VSM which performs comprehensive monitoring of AC systems, DC systems, tanks and bilges in one compact OLED meter with NMEA 2000 connectivity
- ON indicating LEDs installed in all circuit positions
- Backlit label positions
- Circuit identification label sets included
- White toggle circuit breakers match existing traditional panels
- AC and DC buses installed, fully pre-wired and ready for installation
- Panel is marked to comply with ABYC standards
- Red reverse polarity indicated LED
- Instructions | Download
- Cutout Template | Download
| Specifications | |
|---|---|
| Positions | 8 Total AC Positions + Main14 Total DC Positions + Main |
| Actuator Style Flat actuator resists accidental switching by being flush in the ON position Raised rocker actuator standard circuit breaker for AC Source Select panels in the 360 Panel System Restricted OFF actuator can only be switched to OFF by insertion of small screwdriver into slot Toggle actuator An electric switch operated by means of a projecting lever that is moved up and down. | White Toggle |
| Meter | M2 VSM (1850) |
| Nominal Voltage | 120V AC12/24V DC |
| Circuit Breaker Type | Magnetic Hydraulic - trip free |
| Height | 9.25in (234.95 mm) |
| Width | 15.77in (400.56 mm) |
| Depth | 3in (76.2 mm) |
| Included | ||
|---|---|---|
| Qty | PN | Product |
| 1 | 1850 | M2 Vessel Systems Monitor |
| 1 | 7238 | A-Series White Toggle Circuit Breaker - Double Pole 30A |
| 1 | 7250I | Circuit Breaker CA1 100A Red IP |
| 1 | 8030 | Basic DC Panel Label Set - 30 Labels [LABEL] |
| 1 | 8031 | Basic AC Panel Label Set - 30 Labels [LABEL] |
| 14 | 8033 | LED - 12/24V DC Amber |
| 9 | 8034 | LED - 120V AC Green |
| 1 | 8066 | LED - 120V AC Red |
| 22 | 7210 | A-Series White Toggle Circuit Breaker - Single Pole 15A (8 AC Branch and 14 DC Branch) |
