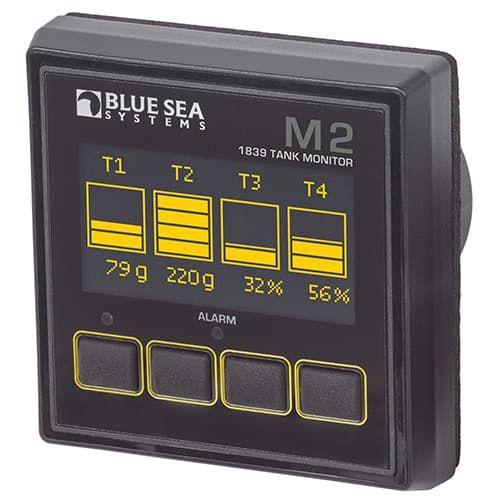

M2 OLED Tank Monitor
The M2 Organic LED Digital Monitor measures essential electrical system parameters with adjustable alarms and an auto-dimming display. The M2 Monitors include a MOSFET External Circuit Relay (ECR) which can be used to control external circuits based on any value measured by the M2.
The M2 Organic LED Digital Monitor measures essential electrical system parameters with adjustable alarms and an auto-dimming display. The M2 Monitors include a MOSFET External Circuit Relay (ECR) which can be used to control external circuits based on any value measured by the M2.
- Auto-dimming, bright Organic LED display is easy to read
- 80dB alarm on all models
- Isolated 500mA MOSFET relay
- Intuitive tank level monitoring
- Monitor up to 4 tanks
- Auto calibration for unique tank shapes
- Compatible with common sending units
- Instructions | Download
- Dimensioned Drawing | Download
- Mounting Diagram | Download
- Quick Start Guide | Download
| Specifications | |
|---|---|
| Meter | Tank |
| Function | Monitors tank volume in up to 4 tanks |
| Resolution | 1% |
| Input Voltage | 7-70V DC |
| Alarm/Relay Activation | High and Low Level |
| Display Size | 55mm x 28mm |
| Range | 0.3W-1.0W |
| Tank Alarms | 80dB |
| Tank Shapes | Custom shapes, auto calibration |
| Weight | 4.00lb (1.81 kg) |
