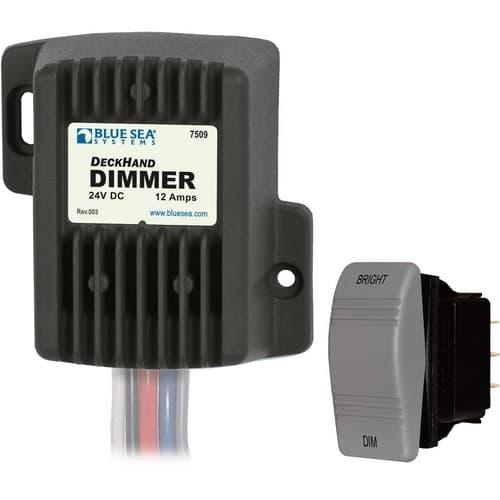

Blue Sea Systems, 7509, Deckhand Dimmer - 24V DC 12A
- Model: 7509
- GTIN: 00632085075095
- Manufactured by: Blue Sea Systems
- Condition: New
-
Estimated Delivery:
Nov 24th - Nov 30th
- Estimated Delivery: 1 to 2 Weeks
- In Stock
- Out of Stock
-
Lead Time To Ship May Vary
Digitally controls dimming of non-regulated LED, incandescent, and halogen lights - Illuminated exit with adjustable time delay
- Digitally controls dimming of non-regulated LEDs, incandescent, and halogen lights
- Memory for last setting
- Provides continuous voltage control from 0 to 100% of input voltage
- Offset mounting tabs allow dimmers to be mounted close together
- Retail package includes momentary (ON)-OFF-(ON) switch

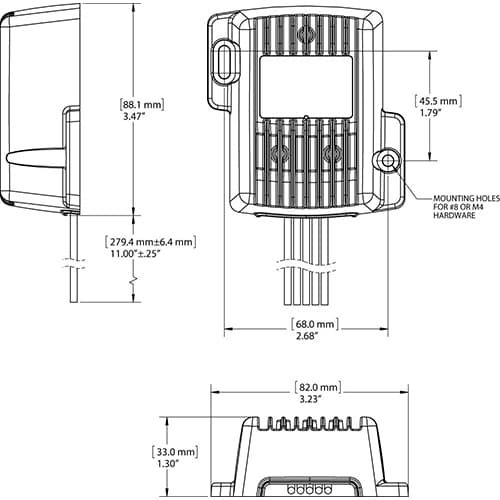

- Dimensioned Drawing
- Instructions
| Specifications |
|---|
| Nominal Voltage | 24V DC |
| Maximum Amperage | 12A |
| Minimum Operating Temperature | -40 C |
| Maximum Operating Temperature | 85 C |
| Maximum Parasitic Current | 2mA |
| Weight | 0.70lb (0.32 kg) |
