The images shown are for illustration purposes only and may not be an exact representation of the product

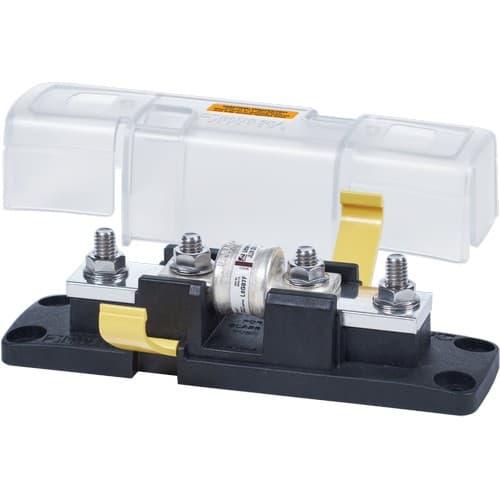

Blue Sea Systems, 5007100, Class T Fuse Block with Insulating Cover - 110 to 200A
- Model: 5007100
- GTIN: 00632085500719
- Manufactured by: Blue Sea Systems
- Condition: New
-
Estimated Delivery:
Nov 28th - Dec 4th
- Estimated Delivery: 1 to 2 Weeks
- In Stock
- Out of Stock
-
Lead Time To Ship May Vary
Allows the use of Class T fuses for fast acting circuit protection of inverters and other electronics - Four stud design provides ample access around connecting stud to install large cable lugs without obstruction from the fuse
- Insulating cover satisfies ABYC/USCG insulation requirements
- Cover breakouts allow wire access in any direction
- Stud design ensures secure fuse mounting even with high heat
- Stainless steel studs provide resistance to corrosion and high torque
- One-piece stainless flange nuts ensure safe and secure connections
- UL 94-V0 base resists high heat
- Ignition Protected
- Dimensioned Drawing
| Specifications |
|---|
| Cable Size | Up to 4/0 AWG |
| Ignition Protected | Yes |
| Maximum Amperage | 200A |
| Maximum Voltage | 160V DC |
| Fuse Mounting Blocks | Tin-Plated Copper |
| Terminal Stud Size | 1/4"-20 (M6) |
| Weight | 1.10lb (0.5 kg) |
