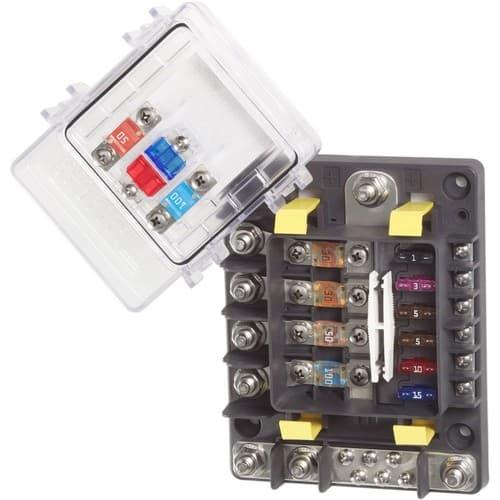

An ignition protected fuse block with screw termination safe for use on gasoline powered boats

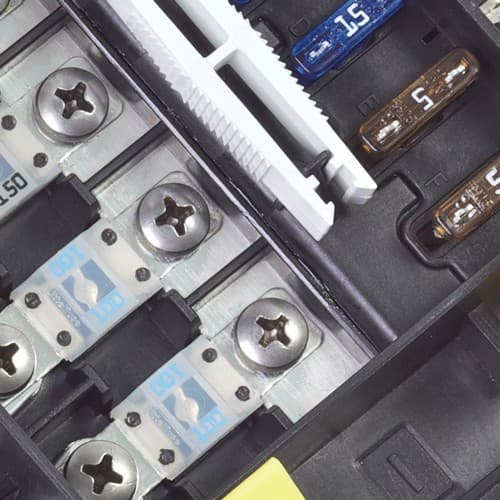

- Accepts four AMI or MIDI Fuses for high-amp circuits up to 200A
- Accepts six ATO or ATC Fuses for circuits up to 30A including bilge pumps, electronics and lights

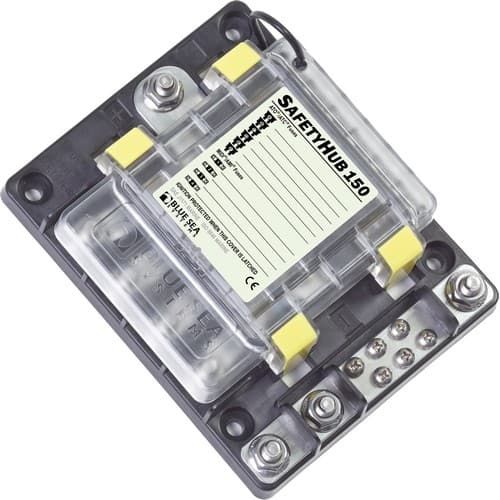

- Sealed cover protects fuses from the harsh marine environment and satisfies ABYC/USCG insulation requirements

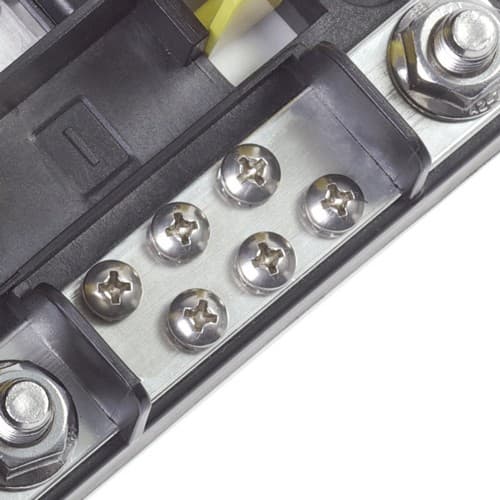

- Negative bus provides common location for negative connection
- Circuit identification label with write-on capability

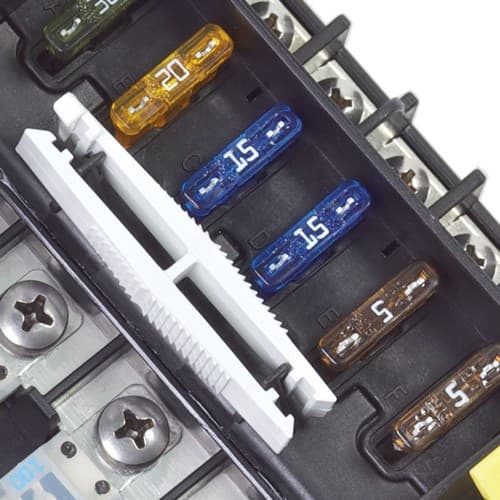

- Fuse puller easily removes ATO or ATC Fuses

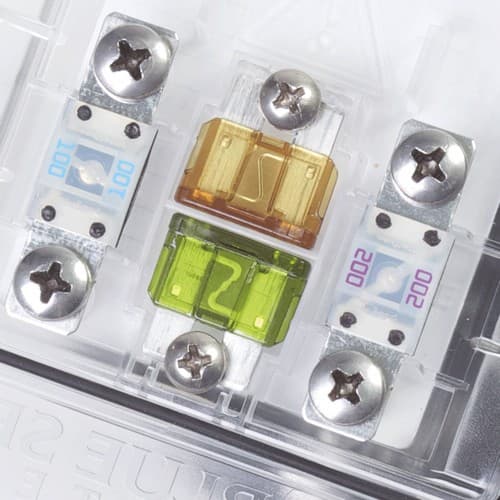

- Cover provides storage space for two spare ATO or ATC and two spare AMI or MIDI fuses and mounting screws
- One-piece stainless flange nuts ensure safe and secure connections
- Fuses sold separately
- Dimensioned Drawing
- Application Diagram
| Specifications | |
|---|---|
| Circuits | 10 |
| Stud Size | M8 x 1.25 |
| Operating Voltage | 12V24V32V |
| Amperage Maximum Operating - combined | 200A 350A 600A |
| Recommended Ring Terminal | M8 (5/16") |
| Screw Torque, 8-32 | 18in-lb (2.03 Nm) |
| Screw Torque, M5 | 27in-lb (3.05 Nm) |
| Stud Torque | 180 in-lb (20.34 Nm) |
| Weight | 3.50lb (1.59 kg) |
