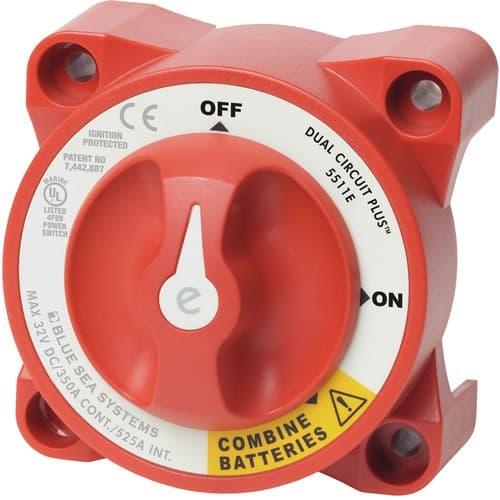

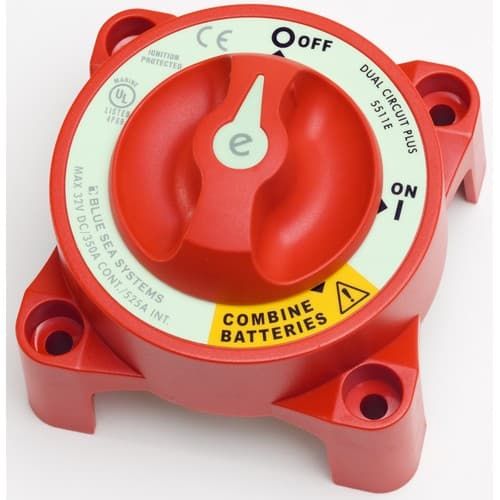

Blue Sea Systems, 5511e, e-Series Dual Circuit Plus Battery Switch

Model: 5511e
GTIN: 00632085551155
Manufactured by: Blue Sea Systems
Condition: New
Estimated Delivery: Nov 22nd - Nov 28th
Estimated Delivery: 1 to 2 Weeks
In Stock
Out of Stock
Lead Time To Ship May Vary

Price:

$106.62 $82.01

Manufacturer Info

Other products

Simultaneously switches two isolated battery banks or combines battery banks to all loads

Make-before-break contact design allows switching without power interruption
Ignition protected - safe for installation aboard gasoline powered boats

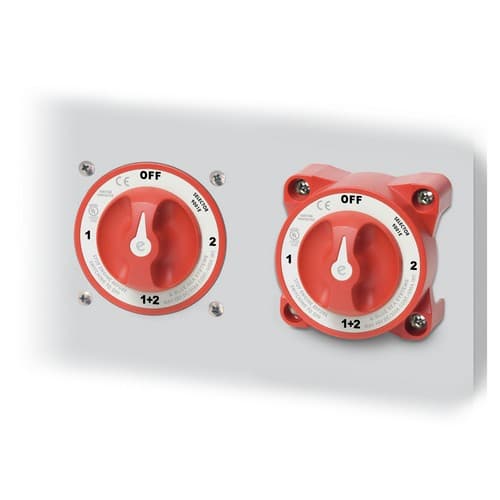

Case design allows surface or rear panel mounting
Instructions | Download
Mouting Diagram | Download

Specifications
Switch Type	Dual Circuit Plus
Color	Red
Switch Positions	3
Battery Combine	Yes
Alternator Field Disconnect	No
Maximum Voltage	32V DC
Terminal Stud Torque	140 in-lb (15.82 Nm)
Continuous Rating	350A
Intermittent Rating	525A (5 min)
Cranking Rating 30 sec	700A per circuit
Battery Inputs	2
Cable Clearance For 4/0 AWG Cables	1.10in (27.94 mm)
Cable Size to Meet Ratings	4/0 AWG (120mm²)
Mounting Holes	Accept 1/4" (M6) Screw
Stud Material	Tinned Copper

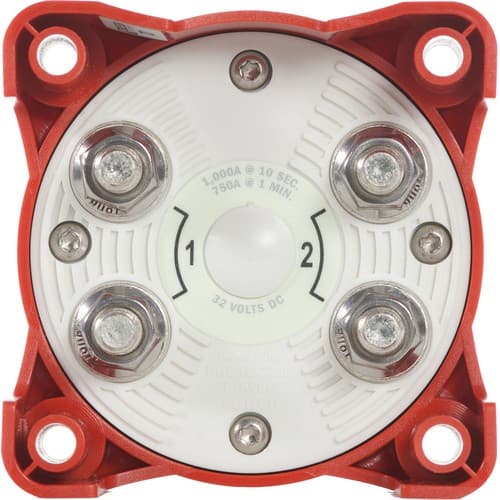

Terminal Stud Size	3/8" - 16 (M10)
Weight	1.16lb (0.53 kg)
Weight	1.30lb (0.59 kg)
