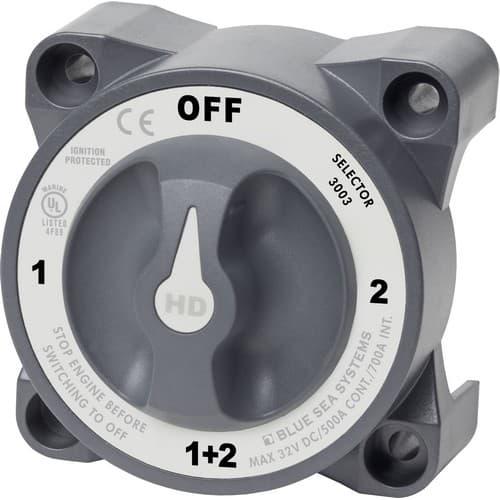

Blue Sea Systems, 3003, HD-Series Heavy Duty Selector Battery Switch with AFD

The images shown are for illustration purposes only and may not be an exact representation of the product

Blue Sea Systems, 3003, HD-Series Heavy Duty Selector Battery Switch with AFD

Model: 3003
GTIN: 00632085030032
Manufactured by: Blue Sea Systems
Condition: New
Estimated Delivery: Apr 2nd - Apr 8th
Estimated Delivery: 1 to 2 Weeks
In Stock
Out of Stock
Lead Time To Ship May Vary

Price:

$181.47 $139.59

Manufacturer Info

Other products

Switches isolated battery banks to all loads or combines battery banks to all loads

Includes AFD (Alternator Field Disconnect)
Make-before-break contact design allows switching between battery banks without power interruption
Ignition protected - safe for installation aboard gasoline powered boats

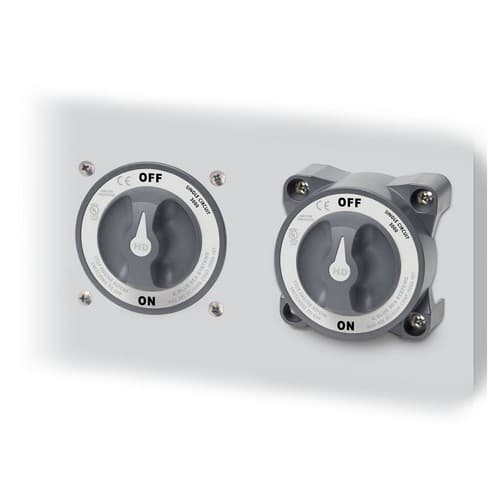

Case design allows surface or rear panel mounting
Accepts two 4/0 AWG (95mm2) battery cables
Instructions
Mounting Diagram

Specifications
Switch Type	Selector 4 Position
Color	Grey
Switch Positions	4
Battery Combine	Yes
Alternator Field Disconnect	Yes
Maximum Voltage	32V DC
Terminal Stud Torque	220 in-lb (24.86 Nm)
Continuous Rating	500A
Intermittent Rating	700A (5 min)
Cranking Rating 30 sec	1600A
Battery Inputs	2
Cable Clearance For 4/0 AWG Cables	1.10in (27.94 mm)
Cable Quantity to Meet Ratings	Two Cables / Terminal
Cable Size to Meet Ratings	4/0 AWG (120mm2)
Mounting Holes	Accept 1/4" (M6) Screw
Terminal Stud Size	1/2" (M12)
Weight	1.25lb (0.57 kg)
