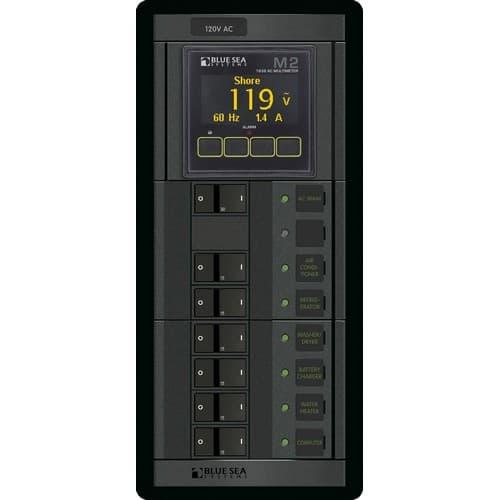

Provides a path for delivering power from the AC source to the AC Branch distribution system
- Red reverse polarity indication LED
- Green ON indicating LEDs
- Backlit label positions
| Specifications | |
|---|---|
| Positions | 6 + Main |
| Actuator Style Flat actuator resists accidental switching by being flush in the ON position Raised rocker actuator standard circuit breaker for AC Source Select panels in the 360 Panel System Restricted OFF actuator can only be switched to OFF by insertion of small screwdriver into slot Toggle actuator An electric switch operated by means of a projecting lever that is moved up and down. | Flat Rocker |
| Meter | M2 AC Multimeter (1838) |
| Nominal Voltage | 120V |
| Circuit Breaker Type | A-Series: Main, 30A (7414)6 Branch, 15A (7403) |
| Height | 10.75in (273.05 mm) |
| Width | 4.88in (123.95 mm) |
| Depth | 4in (101.6 mm) |
