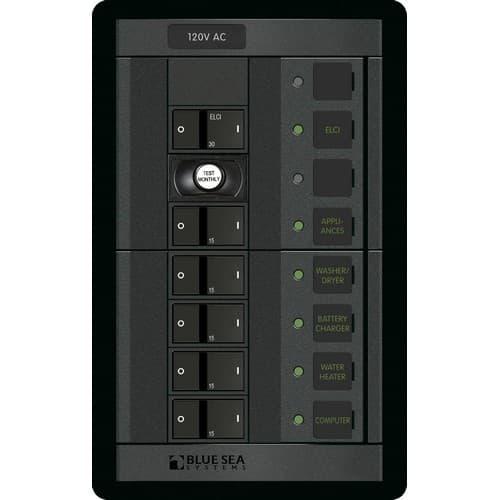

Reduces the risk of fire and shock hazards caused by defects in appliances and circuit wiring
- Provides Main circuit protection with branch circuits
- Green ON indicating LEDs
- Backlit label positions
| Specifications | |
|---|---|
| Amperage | 30A AC Trip Reference |
| Positions | 5 + ELCI |
| Actuator Style Flat actuator resists accidental switching by being flush in the ON position Raised rocker actuator standard circuit breaker for AC Source Select panels in the 360 Panel System Restricted OFF actuator can only be switched to OFF by insertion of small screwdriver into slot Toggle actuator An electric switch operated by means of a projecting lever that is moved up and down. | Flat Rocker |
| Maximum Voltage | 120V |
| Circuit Breaker Type | A-Series: 5- Branch, 15A AC (7403)ELCI: 1 - ELCI Main, 30A AC (3102) |
| Insulating Panel Back | 2 x 1331 sold separately |
| Leakage Trip Amps | 30mA |
| Height | 7.75in (196.85 mm) |
| Width | 4.88in (123.95 mm) |
| Depth | 3.99in (101.35 mm) |
