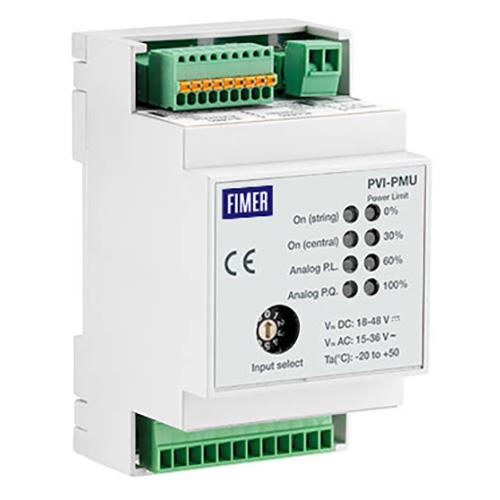

Fimer, PVI-PMU, Power management unit enabling active and reactive power control via ripple control signal, compatibile with PVI-CENTRAL and 3-ph PVi and TRIO string inverters , Including power supply, RS485 input & output, Compatible with all the FIMER string inverters (except for PVS-100/120-TL and PVS-175-TL family), 2 year warranty
Manufacturer Info
Accessories for PVI, UNO, TRIO, ULTRA, CORE and PLUS
FIMER offers several interfaces and accesories for the data transfer of PVI, UNO, TRIO, ULTRA, CORE and PLUS solar inverters.
Allows active and reactive power control according to EEG-2009'6 and BDEW
Protocol converter from Aurora proprietary protocol to Modbus RTU or Modbus TCP
Allows serial interfacing between photovoltaic inverters and computer via RS485 link
FIMER offers several interfaces and accesories for the data transfer of PVI, UNO, TRIO, ULTRA, CORE and PLUS solar inverters.
- PVI-PMU EU Declaration of Conformity | Download
- PVI-RS485-MODBUS EU Declaration of Conformity | Download
- PVI-USB-RS232_485 EU Declaration of Conformity | Download
- Solar inverter solutions for building applications | Download
- PVI-PMU UKCA Declaration of Conformity | Download
- PVI-RS485-MODBUS UKCA Declaration of Conformity | Download
- PVI-USB-RS232_485 UKCA Declaration of Conformity | Download
Allows active and reactive power control according to EEG-2009'6 and BDEW
- Offers 4 digital inputs and 2 analog inputs for active and reactive power control
- Permits the integration with an external acquisition and data control system via two RS485 ports (from Inverter to Modbus)
- Capable to control up to 32 Inverters or 55 kW modules
- Power supply transformer provided
Protocol converter from Aurora proprietary protocol to Modbus RTU or Modbus TCP
- Up to 32 inverters or 55 kW modules connected
- Multi-drop bus connection allowed for RTU
- 50 Hz transformer and cables are provided
- No active-reactive power control in Modbus RTU
Allows serial interfacing between photovoltaic inverters and computer via RS485 link
- Operating systems supported: Win XP, Win 7, and Linux based
- Works with centralized and string inverters
- No power supply needed (auto-supplied via USB port)
- Communicator - Monitoring of string and centralized inverters
- Installer - Managing and monitoring of string inverters
- CVI Central - Managing and monitoring of centralized inverters
- Stringcomb Installer - Managing and monitoring of string combiner
- Manager - Configuration and monitoring software
