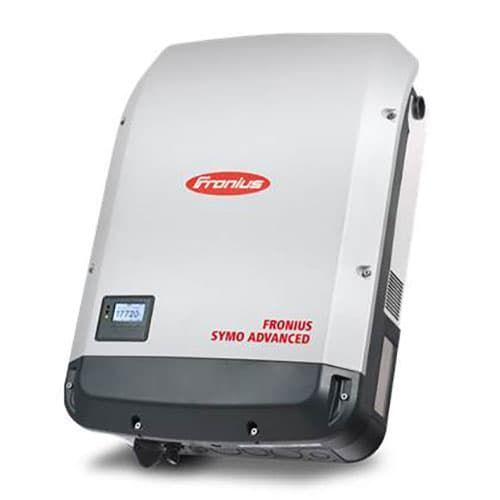

The images shown are for illustration purposes only and may not be an exact representation of the product

Fronius, 4,210,090,800, Symo Advanced 10.0-3 208-240VAC with DM Card

Model: 4,210,090,800
Manufactured by: Fronius
Condition: New
Estimated Delivery: Nov 25th - Dec 1st
In Stock
Out of Stock

Price:

$4,590.13 $3,530.87

Manufacturer Info

Other products

Specially Developed For The Requirements of Tomorrow

Featuring models ranging from 10 kW to 24 kW, the Fronius Symo Advanced is the ideal inverter for commercial applications. The new Advanced versions combine the benefits of the Fronius Symo with additional features zero tilt mounting, light weight and field serviceability.

Product Specification | Download

Width	511 mm
Height	724 mm
Depth	226 mm
Weight	41,68 kg
Installation	Indoor and outdoor installation, tilt form 0-90 degrees (Fronius Shade Cover required for installation angles less than 15 degrees)
Permitted humidity 2)	0-100% (non-condensing)
Dimension (width)	511 mm
Dimension (height)	724 mm
Dimension (depth)	226 mm
Weight	41,68 kg
Protection class	NEMA 4X
Night time consumption	<1 W
Inverter topology	Transformerless
Cooling	Variable speed fan
Elevation	2000 m (6562 ft) with a max. input voltage of 1000 V / 3400 m (11155 ft) with a max. input voltage of 850 V
Certificates and compliance with standards	UL 1741-2010 Second Edition (incl. UL1741 Supplement SA 2016-09 for California Rule 21 and Hawaiian Electric Code Rule 14H), UL1998 (for functions: AFCI, RCMU and isolation monitoring), IEEE 1547-2003, IEEE 1547a-2014, IEEE 1547.1-2003, ANSI/IEEE C62.41, FCC Part 15 A & B, NEC 2017 Article 690, C22. 2 No. 107.1-16, UL1699B Issue 2 -2013, CSA TIL M-07 Issue 1 -2013
DC connection terminals	6x DC+ and 6x DC- screw terminals for copper (solid / stranded / fine stranded) or aluminum (solid / stranded)
AC connection terminals	Screw terminals 14-6 AWG

Number of MPPT	2
Recommended PV Power (kWp)	8,0 - 13,0 kWp
Max. usable input current	41,5 A
Max. usable input current total (MPPT1 + MPPT2)	41,5 A
Max. array short circuit current (1.5 * I_max)	62,2 A
Nominal input voltage	350 V
Operating voltage range	200-600 V
MPP Voltage Range	300-500 V
Max. input voltage (U_{dc max})	600 V

Max. output power 480 V	NA
Max. output power 277 V	NA
Max. output power 240 V	9995 W
Max. output power 208 V	9995 W
Output configuration	3~ NPE 208-240 V
Frequency range	45-66 Hz
Nominal operating frequency	60 Hz
Total harmonic distortion	< 1,5 %
Power factor range	0-1 ind,/cap,
Max continuous output current 480 V	NA
Max. continuous output current 277 V	NA
Max. continuous output current 240 V	24,0 A
Max. continuous output current 208 V	27,7 A
OCPD/AC breaker size 480 V	NA
OCPD/AC breaker size 208 V	35 A
Max. efficiency	97 %
CEC efficiency 240 V	96,5 %
CEC efficiency 208 V	96,5 %

DC reverse polarity protection	Yes
Anti islanding	internal; in accordance with UL 1741-2010, IEEE 1547-2003 and NEC
Over temperature protection	Ouput power derating/Active cooling
AFCI	Yes
Rapid shutdown compliant	Yes
Ground fault protection with isolation monitor interrupter	Yes
DC disconnect	Yes

USB (type A socket)	Datalogging and inverter update possible via USB
2x RS422 (RJ45 socket)	Fronius Solar Net, interface protocol
Wi-Fi / Ethernet / Serial / Datalogger and webserver	Wireless standard 802.11 b/g/n / Fronius Solar.web, SunSpec Modbus TCP, JSON / SunSpec Modbus RTU
6 inputs and 4 digital I/Os	Load management; signaling, multipurpose I/O
Power Line Communication (PLC)	Yes – SunSpec Rapid Shutdown communication standard
Compatible Module Level Electronic	Tigo TS4-F based on SunSpec PLC (pending testing)
